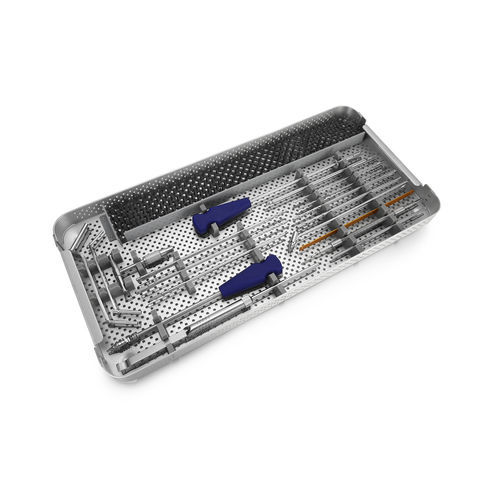

Pelvic surgery instrument kit

orthopedic surgerytraumatologycustomizable

Overview
This 43-piece instrument set is designed for pelvic reconstruction and the fixation of pelvic fractures in surgical procedures. Instruments are manufactured from high‑quality surgical materials and produced in compliance with CE MDR and FDA requirements.
Screwdrivers can be supplied or custom-made to match customer screw sizes (OEM). The set includes a sterilization box for OR handling and storage.

Set list
S.N. | Ref. Code | Description
1. 0581.01013 | Flexible Drill, φ2.5
2. 0581.02010 | Guide Drill, φ2.5
3. 0581.05010 | Screw Holding Forcep, long
4. 0581.09011 | Distractor
5. 0581.10010 | Large Pelvic Reduction Forceps, oblique
6. 0581.10011 | Small Pelvic Reduction Forceps, oblique
7. 0581.10012 | Pelvic Reduction Forceps, straight
8. 0581.10020 | Bone Forceps (small)
9. 0581.10021 | Bone Forceps (large)
10. 0581.10030 | Pelvic Reduction Forceps with Pointed 3 Ball Tips
11. 0581.10031 | Pelvic Reduction Forceps with Pointed 2 Ball Tips (High & Low)
12. 0581.10032 | Pelvic Reduction Forceps with Pointed 2 Ball Tips (Flush)
13. 0581.10043 | Plate Bender, 10.2/12mm
14. 0581.10050 | Acetabulum Reduction Forcep
15. 0581.12010 | Ball Tip (arc)
16. 0581.12011 | Ball Tip (flat)
17. 0581.12020 | Hook
18. 0581.12021 | T Hook
19. 0590.07013 | Universal Screwdriver, SW2.5
20. 0590.07023 | Universal Screwdriver, SW3.5
21. 0590.12014 | Ball Spike
22. 0181.02050 | Drill Guide, φ2.5/φ3.5
23. 0181.03130 | Depth Gauge, long type
24. 0181.05020 | Screw Holder, φ6
25. 0181.06030 | 3.5 Template, straight, green, 11mm
26. 0181.06114 | Bender for left & right, dual purpose, 10.2/12.2, 2×1
27. 0182.01013 | φ2.5 Drill Bit, L=230mm
28. 0182.01023 | φ3.5 Drill Bit, L=195mm
29. 0182.04016 | φ3.5 Tap, L=195 (HA3.5 P=1.25)
30. 0182.04024 | φ4.0 Tap, L=195 (HB4.0 P=1.75)
31. 0182.07036 | Screwdriver, SW2.5
32. 0182.11017 | Quick Change Handle, T
33. 0190.07027 | Hex Screwdriver, SW2.5
34. 0281.02050 | Drill Guide, φ3.2/φ4.5
35. 0281.05010 | Screw Holding Sleeve
36. 0281.06020 | 4.5 Template, 12×212/4.5
37. 0281.10010 | Reduction Forceps with Points
38. 0282.01013 | φ3.2 Drill Bit, L=230mm
39. 0282.01023 | φ4.5 Drill Bit, L=195mm
40. 0282.04016 | φ4.5 Tap, L=195mm
41. 0282.07041 | Hex Screwdriver, SW2.5
42. 0290.07023 | Hex Screwdriver, SW3.5
43. XT01006 | Sterilization Box

Technical specifications

• Number of components: 43 (including sterilization box)
• Intended use: Pelvic reconstruction system for fixation of pelvic fractures
• Regulatory/compliance: CE MDR and FDA (as stated)
• Materials: high‑quality surgical instrument materials (not further specified)
• Screwdrivers: can be manufactured according to customer screw sizes (OEM)
• Includes: drills, drill guides, drill bits, taps, screwdrivers, hex screwdrivers, templates, reduction and pelvic forceps, benders, handles, depth gauge, screw holders, and sterilization box
