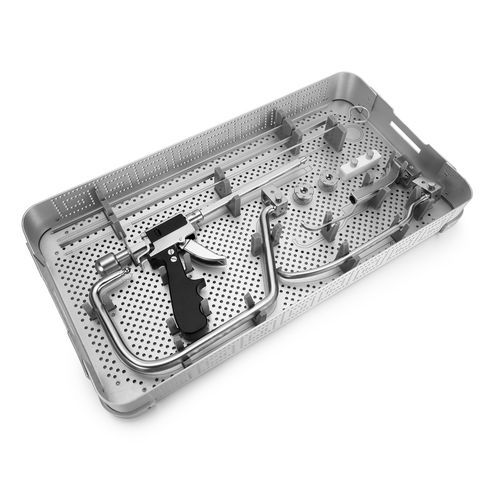

Pelvic surgery instrument kit

Overview
This instrument set is designed for the pelvic system to enable accurate reduction and fixation of pelvic fractures during surgery. Components are manufactured from surgical-grade materials and the set is produced in compliance with CE MDR and FDA requirements.

Set contents

• 1 | 4082.01010 | Sliding Device
• 2 | 4082.01020 | Reduction Arm
• 3 | 4082.01030 | Pelvis Reduction Forceps
• 4 | 4082.01040 | Percutaneous Minimally Invasive Reduction Forceps
• 5 | 4082.01050 | Spare Locking Bolt
• 6 | 4082.01060 | Rivet
• 7 | 4082.01070 | Guide Wire, φ2.5×400
• 8 | 4082.01080 | Guide Wire with Thread Tip, φ2.5×400
• 9 | 4082.01090 | Cleaning Pin, φ2.8
• 10 | XT01007 | Sterilization Tray

Technical specifications

• Suitable system: Pelvic system
• Included components: Sliding Device; Reduction Arm; Pelvis Reduction Forceps; Percutaneous Minimally Invasive Reduction Forceps; Spare Locking Bolt; Rivet; Guide Wires; Cleaning Pin; Sterilization Tray (XT01007)
• Guide wire dimensions: φ2.5×400 (standard and thread-tip versions)
• Cleaning pin dimension: φ2.8
• Compliance: CE MDR and FDA
• Materials: surgical instrument materials (manufacturer description)
