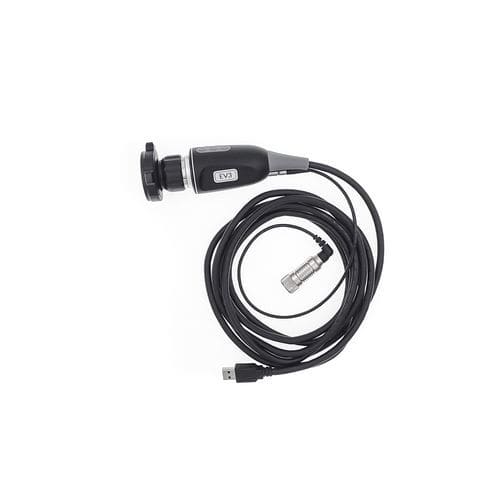

Endoscope camera head EV3

endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
endoscope camera head
Add to favorites
Compare this product


for endoscopes, medical, veterinary
Resolution level
HD, full HD
Sensor type
Light source
with LED light
Other characteristics
with zoom, autoclavable, USB

120 g (4 oz)


When you need an instrument with high mobility and a very low weight, the EV3 is the best solution. Only a PC or notebook with a USB 3.0 connection is required to obtain a complete video endoscopy station. The LED integrated in the camera head, powered by the USB port, avoids the use of the external light source and the related fiber optic cable. The high-sensitivity Full HD CMOS sensor returns a clear and vivid image, even in low light conditions. Through the standard connection fittings, available with different fixed and zoom focal lengths, the field of view can be adapted according to the fixed or flexible endoscope used. The EV3 is supplied as standard with software equipped with a patient database and a practical carrying case. Sensor - CMOS 1/3" Full Hd, 16/9 Resolution - 1.920 x 1.080 @30fps Sensivity - 1 Lux Shutter - elettronic from 1/50 to 1/100.000 sec Signal/noise ratio - >52 dB Picture/movie capture - Two buttons on camera head Fitting - C-Mount coupler (optional) White balance - Push to white button on camera head Led light source - 5.500°K, timelife 25.000 hours Connection cable - Lenght 3 m, USB3.0 standard Field of use - Flexible and rigid endoscopes Sterilization - Immersion in liquid or ethylene oxide Head dimension - 5 x 5 x 10 cm. Weight - 120 g ca. without coupler S.O. compatiblity - Windows 10 and IOS Compliant with - 93/42/CEE Classification - I tipe BF
