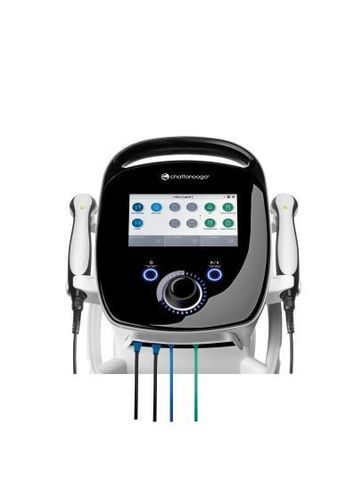

Ultrasound diathermy unit Intelect® Legend 2

Russiandirect current

Overview
The Intelect® Legend 2 is a next-generation combo system for electrotherapy and therapeutic ultrasound, available in two- or four-channel configurations. Designed for clinical physiotherapy and rehabilitation settings, it integrates Chattanooga's proprietary VMS waveform for efficient muscle contraction, suggested protocols to reduce setup time and an optional magnetic cart for easy mobility. Improved battery life supports all-day portable use.

Features & Benefits

• 2&Go Treatments

Save up to 12 preset or custom protocols on the home screen for immediate treatment start within two button presses.

• VMS Waveform

Proprietary VMS delivers stronger, more efficient muscle contractions with reduced neural fatigue while maintaining patient comfort.

• SPS Menu

Set up a treatment in three button presses by selecting a clinical indication instead of individual waveforms and parameters.

• Magnetic Cart

Optional cart with magnetic attachment enables tool-free installation and easy movement throughout the clinic.

• Improved Battery Life

Extended runtime for portable applications and reduced need for excess cables.

• 12 Electrotherapy Waveforms

Includes VMS, VMS Burst, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current, VMS FR.

• Sleek Industrial Design

App-like interface and ergonomic form factor improve usability for clinicians and patient experience.

• Dual Frequency Ultrasound

1 MHz and 3.3 MHz modes with applicator options of 1 cm², 2 cm², 5 cm² and 10 cm².

• Wide Range of Accessories

Compatible with multiple leadwire, electrode and ultrasound accessory options.

Standard Accessories

• 6 x 8 cm carbon electrodes (qty 4)
• Stim channel 1/2 leadwire kit
• Stim channel 3/4 leadwire kit
• Dura-Stick® Plus 5 cm (2") cloth, square
• USB drive with Intelect Mobile 2
• Power cord
• Nylatex wrap (2 per pack)

Technical Specifications

• Mains power: 100–240 VAC, 50/60 Hz, 1.0 A
• Weight: 8.2 lb (3.7 kg)
• Shipping weight: 13 lb (5.9 kg)
• Dimensions: 14" L x 13.4" W x 7.5" H (35.5 cm x 34 cm x 19 cm)
• Electrical safety class: Class 1, Electrotherapy Type B, Ultrasound Type B
• Safety tests: IEC 60601-1; ISO 10993-1; IEC 60601-2-5; IEC 60601-1-2; IEC 60601-2-10; IEC 60601-1-6; IEC 62366-1; IEC 62304; IEC 62133; ISO 14971
• Electrotherapy waveforms: VMS, VMS Burst, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current, VMS FR
• Ultrasound: Dual frequency 1 MHz or 3.3 MHz with 1 cm², 2 cm², 5 cm² and 10 cm² applicators
