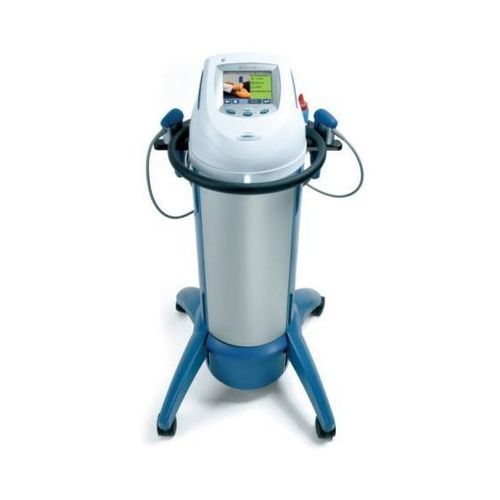

Musculoskeletal disorder ESWT unit Intelect RPW Shockwave

trolley-mounted

Overview

• Radial pressure waves offer a non-invasive therapeutic option for tendon insertion and soft tissue pathologies.
• Local treatment of the affected area aims to modulate healing responses, reduce pain and restore function.
• With minimal adverse effects, radial pressure wave therapy is indicated for conditions that are often difficult to treat and is used in multiple clinical applications.
• Physiological effects include pain modulation (Gate Control theory), increased cellular metabolism, revascularization promoting tissue repair and recovery of muscle tone.

Intended use
The device is intended as a clinical therapeutic modality for healthcare professionals to treat pain, myofascial trigger points, disorders of tendon insertions, and to activate muscle and connective tissue.

Indications for use

• Myofascial Trigger Points (MTrP)
• Localization and deactivation of trigger points (low energy ~2 bar for localization; higher energy ~3 bar for deactivation)
• Activation of muscle and connective tissue
• Increased local circulation
• Pulse vibration massage for relief of muscle strain
• Disorders of tendon insertions
• Plantar fasciitis, heel pain, heel spur
• Tendinosis calcarea / supraspinatus tendon (shoulder calcifications, chronic shoulder pain)
• Lateral and medial epicondylitis (tennis elbow)
• Achillodynia (Achilles tendon inflammation-related pain)
• Retropatellar pain syndrome
• Tibial edge syndrome
• Proximal iliotibial band friction syndrome / trochanteric insertion tendinopathy

Features & Benefits

• 2-channel output: supports connection of two handpieces for sequential or combined use of applicators during treatment.
• Touchscreen navigation: menu-driven interface with quick access to indications, clinical protocols and user protocols.
• Gradual energy ramp: automatic, smooth intensity increase during a session for controlled dosing.
• Clinical resources: integrated image library of anatomy and pathologies, handpiece placement guides and contraindications.
• Additional features: full-colour LCD touch-screen; secure storage for handpieces, transmitters and gel; 360° swivel interface; large storage drawer; multilingual software; patient data cards for session recording, pain scales and mapping.
• Compressed air output: 1.4 - 5 bar.
• Power increment settings: 0.2 bar.
• Mode: single shock / continuous shock 0.5 - 21 Hz.
• 2-year warranty.

Standard Accessories

• D-ACTOR® hand piece applicator
• Revision kit
• D20-S D-ACTOR® 20 mm transmitter
• Ultrasound gel bottle - 250 ml
• Ro40 D-Actor® 'Beam' transmitter
• Patient data cards
• User manual on CD Intelect RPW Shockwave
• V-Actor hand piece applicator kit

Technical specifications

• Main power: 230 V ~ 50 Hz (Model 2074)
• Electrical safety class: Class 1, Type B
• Safety standards: IEC/EN 60601-1, 60601-2-3, 60601-1-2, 60601-1-4
• Dimensions: 41 x 42 x 114 cm
• Weight: 33 kg
• Compressed air output: 1.4 - 5 bar
• Power increment settings: 0.2 bar
• Mode: single shock / continuous shock 0.5 - 21 Hz
• Warranty: 2-year warranty
