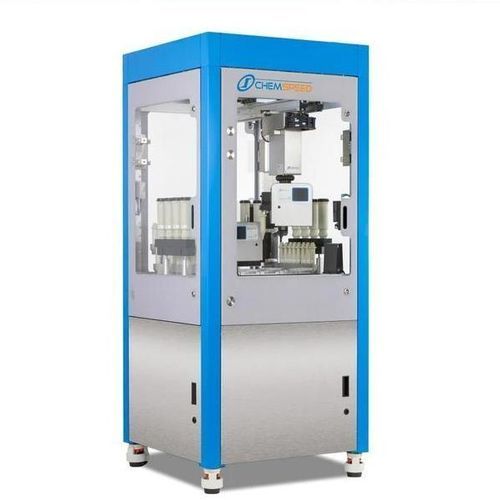

Laboratory dispensing robot FLEX SWILE

for the pharmaceutical industrysamplefor drugs

Overview
The SWILE technology delivers fully automated, true one-to-one gravimetric “pick & decision dispense” of solid compounds (mother-to-daughter). The system uses Chemspeed’s proprietary overhead gravimetric dispensing tool together with a secondary on-deck analytical balance. Disposable glass SWIN tips are provided by an automated SWIN dispenser to eliminate cross-contamination. SWIN tips are available in different diameters and are selected according to the target dispensing amount. A tilt/shake rack pre-loosens and tilts powders prior to pick-up.

Key capabilities

• High accuracy and precision enabled by decision dispensing
• Dispensing range: from hundreds of μg (~100’s μg) up to ~5 mg with ~±10 μg resolution
• No cross-contamination due to disposable glass tips
• No dead volume in the dispensing path
• Unattended operation supported
• Fully inert glass contact path

Workflow

• Read barcode of source compound/sample vial
• Transport source vial to tilt/shake rack
• Loosen solid compound by tilt/shake
• Gravimetric pick and dispense into tubes, vials or plates

Benefits

• Proprietary robotic tool exchange interface for modular workflows
• Ventilated hood for safe and conditioned operation; mobile trolley option
• Optimized footprint (~90 x 90 cm / 3 x 3 ft) to reduce space and operating costs
• SWILE robotic tool compatible with additional tools to support multiple workflows
• Integrated on-deck balance, tilt/shake rack, barcode reader and multigripper
• Exchangeable robotic tools for flexible automation
• AUTOSUITE SOFTWARE — drag & drop experiment design with direct data analysis interfaces
• Interfaces to DOE, ML, AI, LIMS, ELN and ERP systems

Technical specifications

• Dispensing range: from hundreds of micrograms (~100’s μg) up to ~5 mg
• Resolution / decision dispensing precision: approximately ±10 μg
• Gravimetric approach: overhead gravimetric dispensing tool plus secondary on-deck analytical balance
• Consumables: disposable glass SWIN tips (various diameters); fully inert glass path to prevent adsorption/contamination
• Pre-processing: tilt/shake rack to loosen powder prior to pickup
• Automation: true one-to-one (mother-to-daughter) automated gravimetric pick & decision dispense
• Contamination control: disposable tips ensure no cross-contamination and no dead volume
• Integration: on-deck balance, barcode reader, multigripper; robotic tool exchange interface for modular workflows
• Footprint: optimized small footprint (~90 x 90 cm / 3 x 3 ft)
• Software: AUTOSUITE for drag & drop experiment design; interfaces to DOE, ML, AI, LIMS, ELN, ERP
• Operation: capable of unattended operation
