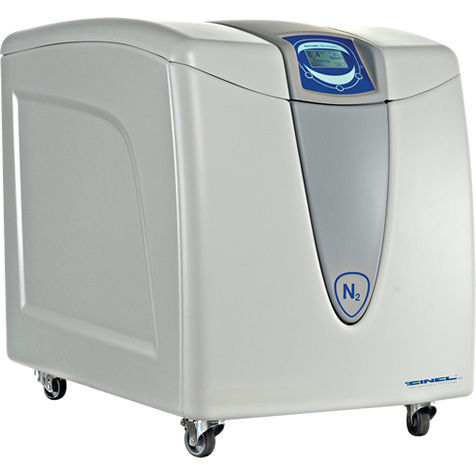

Nitrogen generator ZEFIRO 45 DUAL PURITY
for LC/MSmobileultra-high purity

nitrogen generator
nitrogen generator
Add to favorites
Compare this product


Gas type
for LC/MS
Other characteristics
ultra-high purity

45 l/min, 300 l/min (12 us gal/min)

Output pressure

6 bar (87.02 psi)

Gas purity

99.9 %

Rated capacity

1,900 W (2.6 hp)


ZEFIRO Nitrogen Generator 45 DUAL PURITY is specifically designed to meet the gas flow, purity and pressure requirements of Thermofischer exploris instrument. The system supplies simultaneously Nitrogen for LC/MS & ultra high purity nitrogen for the collision cell. INPUT VOLTAGE - 230 V – 50 or 60 Hz PRESSURE ACCURACY 0.1 bar (± 0.5 %) MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px INDEX OF PROTECTION IP20 TEMPERATURE - 5°C to +30°C RELATIVE HUMIDITY 0-80%, non condensing SOUND PRESSURE LEVEL - 55 dB(A) OUTPUT PORT N°2 1/4 G CASE DIMENSIONS width 48 cm, height 70 cm, length 84 cm
