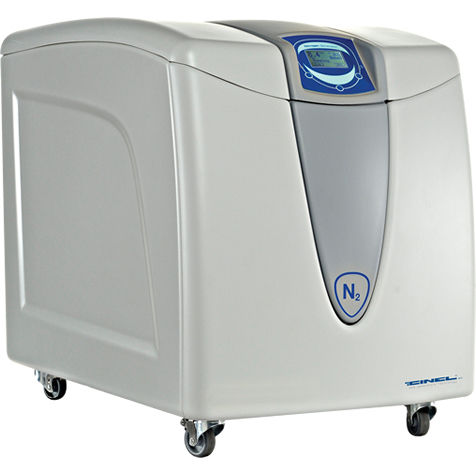

Nitrogen generator ZEFIRO LC/MS 65
humiditymedicalmobile

nitrogen generator
nitrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
nitrogen, humidity
Applications
medical
Configuration
mobile
Technology
membrane
Output

65 l/min (17 us gal/min)

Description

ZEFIRO Nitrogen Generator is designed specifically as a stand-alone system to provide nitrogen flux to single LC/MS applications which require a high nitrogen consumption or allows two standard LC/MS to be supplied contemporaneously. The Nitrogen generator uses membrane Technology to produce nitrogen gas at specific purity required. STANDARD NITROGEN FLOW RATE - up to 65 l/min at STP OUTLET PRESSURE - up to 7.0 bar (102 psi) STANDARD PURITY - 98,5% at STP INPUT VOLTAGE - 230 V – 50 or 60 Hz WEIGHT - 120 Kg POWER CONSUMPTION - 1900 W PRESSURE ACCURACY - 0.1 bar (± 0.5 %) MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px INDEX OF PROTECTION - IP20 TEMPERATURE - 5°C to +30°C RELATIVE HUMIDITY - 0-80%, non condensing SOUND PRESSURE LEVEL - 55 dB(A) OUTPUT PORT - G 1/4 CASE DIMENSIONS - width 48 cm, height 70 cm, length 84 cm
