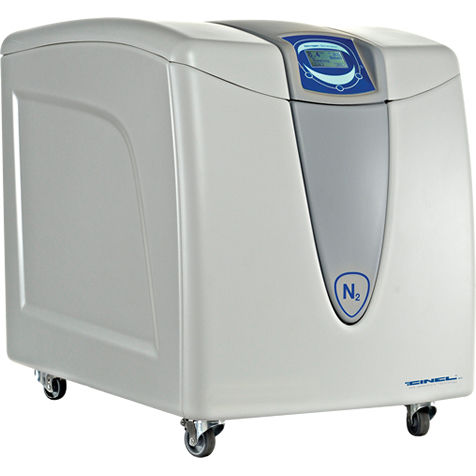

ZEFIRO Nitrogen Generator ELSD series is specifically designed to meet the gas flow, purity and pressure requirements of Evaporative Light Scattering Detectors. The Nitrogen generator uses pressure swing adsorption technology (PSA) to produce nitrogen gas.
This system uses carbon molecular sieve (CMS) which selectively adsorbs oxygen and water vapor molecules under high pressure, while
allowing Nitrogen to pass through.
INPUT VOLTAGE - 230 V – 50 or 60 Hz
PRESSURE ACCURACY - 0.1 bar (± 0.5 %)
MICROPROCESSOR CONTROLLED DISPLAY - Graphic display, 128 x 64 px
INDEX OF PROTECTION - IP20
TEMPERATURE - 5°C to +30°C
RELATIVE HUMIDITY - 0-80%, non condensing
SOUND PRESSURE LEVEL - 50 dB(A)
OUTPUT PORT - G 1/4
CASE DIMENSIONS - width 48 cm, height 70 cm,
length 84 cm
