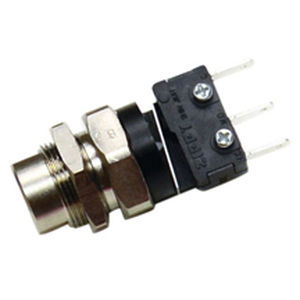

Medical switch SAS-1A1-06-F

leverSPDT

SAS Series switches utilize a standard sub-miniature single pole double throw (SPDT) electrical switch certified UL and CSA. Mechanically-operated models are also available which may be used with any Clippard air pilot or push button actuator. The electrical switch is actuated by a lever arm which may be used as a manual override. MAS Series switches utilize a standard miniature single pole double throw (SPDT) electrical switch certified UL, CSA, SEMKO and VDE. They are available in #10-32, M5, manual, and female 1/8-27 NPT ports for direct mounting into manifolds. Sub-Miniature & Miniature styles available Pressure & Mechanically-Actuated versions Length - 1.490 Nominal Actuation Pressure - 6 psig Port, Inlet - 1/8" NPT Female Product Line Brochure - Mechanical Valves Switch Current Rating - SAS 5A@125/250VAC, 3A@30VDC Switch Terminals - 110 Series Q.C.
