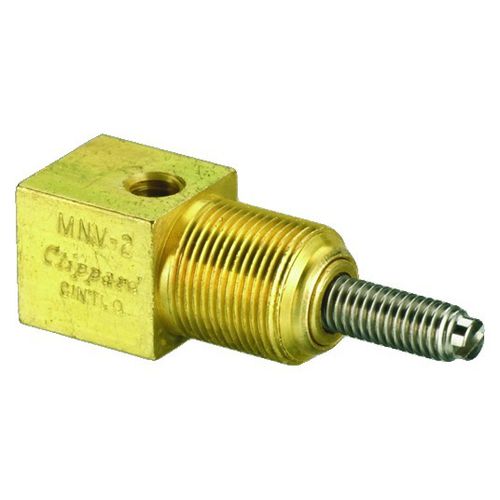

Medical valve MNV-2

brass

Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment. Rugged and compact design Direct, in-line or cartridge mount Screwdriver slot adjustment or knurled knob #10-32 or 1/8" NPT ports Adjustment - Screwdriver Air Flow - 28 l/min @ 50 psig; 71 l/min @ 100 psig Included Item(s) - Lockwashers Input PSI - 300 psig max. Material, Body - Brass Material, Needle - Stainless Steel Material, Seals - Nitrile Max PSI - 300 psig Medium - Air, Water or Oil Mount - In-Line (#15/32-32 thread) Operating Temperature Range - 32 to 230°F (0 to 110°C) Product Line Brochure - Mechanical Valves Type (Inlet / Outlet ) - 5° (#10-32 / #10-32) In-Line Unit - Imperial Weight (lbs.) - 0.0600
