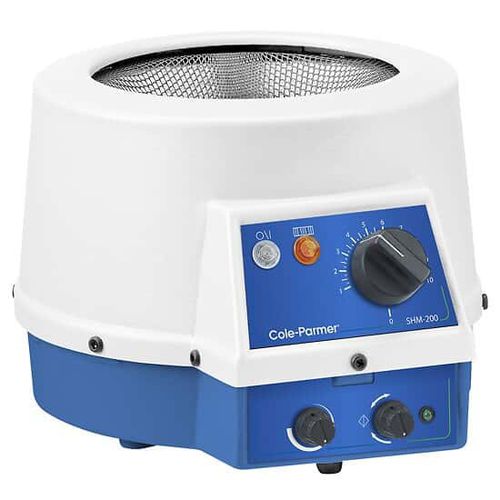

Analog heating mantle SHM-200

multiple-volumewith magnetic stirrerwith regulator

Overview
Provides stirring speeds up to 520 rpm and heating up to 450°C (842°F).

Key features

• Bidirectional stirring with stir bar auto capture (auto-recapture) function
• Thermal insulating cartridge provides maximum heat transfer
• Chemical-resistant polypropylene housing is safe to the touch
• Built-in power controller with dial markings from 1 to 10 for repeatability
• Two colored indicator lights: power on and heat on
• Replaceable coiled heating element suspended within a thermal insulating cartridge for support and heat transfer
• Unique ventilation slots and ceramic fiber insulation keep the exterior cool during use
• Safety earth (ground) screen and double fuses for added safety

Details
Stir your sample while heating up to 450°C (842°F). These durable stirring/heating mantles feature a bidirectional magnetic stirrer with speeds up to 520 rpm. An auto-recapture function reactivates stirring if it is interrupted or lost. The replaceable coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support. Ventilation slots and ceramic fiber insulation maintain a cool, chemical-resistant polypropylene exterior during operation. Safety features include a safety earth (ground) screen and double fuses.

Technical specifications

• Series/model: SHM-200 Series
• Maximum stirring speed: up to 520 rpm
• Maximum temperature: up to 450°C (842°F)
• Stirring: bidirectional magnetic stirrer; auto-recapture function
• Controller: built-in power controller with dial markings 1–10
• Indicators: two colored lights (power on, heat on)
• Heating element: replaceable coiled element in thermal insulating cartridge
• Housing: chemical-resistant polypropylene
• Insulation & ventilation: ceramic fiber insulation; unique ventilation slots
• Safety: earth (ground) screen; double fuses
• Available max flask sizes (mL): 50, 100, 250, 500, 1000, 2000
• Power options (VAC): 115 and 230
• Number of product variations available: 8
• Price range (excl. VAT): £792.72 - £1,189.14
