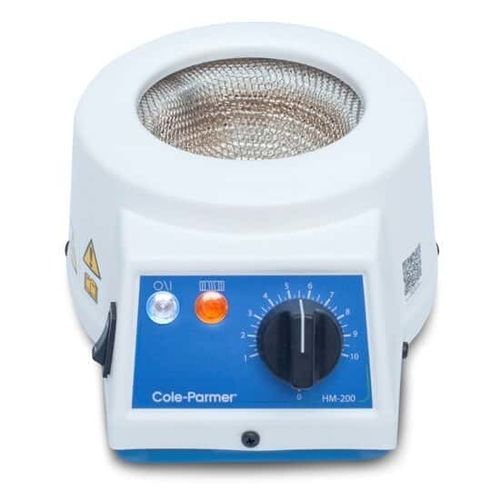

Analog heating mantle HM-200

with regulatorlarge-volumemultiple-volume

Overview
Funnel-shaped cavity with a base opening permits use with 60° funnels and a wide variety of flasks. The base opening accommodates different flask necks while the funnel geometry stabilizes small funnels. Heating elements reach a maximum temperature of 842°F (450°C). Integrated power controller with dial markings 1–10 enables repeatable heat settings. "Power on" and "Heater on" indicator lights provide clear unit status.

Key Features

• Ceramic-fiber insulation to maintain a cool external case
• Built-in power controller with dial markings 1–10 for repeatability
• Chemical-resistant polypropylene housing for lab environments
• Funnel-shaped cavity compatible with 60° funnels and multiple flask types
• Maximum element temperature: 842°F (450°C)

Series Variations and Notes
The 36101-series models include a stainless steel (SS) liner over the heating element for spill protection and easier cleaning. The 36104-series models include a safety earth (ground) screen for enhanced operator safety. Except for 5000‑mL models, mantles feature a single support-rod clamp that accepts a 1/2" rod.

Available Product Options (Max Flask Size (mL) | Power (VAC) | Description)
1000 | 115 | Flask/Funnel Heating Mantle with SS liner, 50 to 1000 mL
1000 | 230 | Flask/Funnel Heating Mantle with SS liner, 50 to 1000 mL
5000 | 115 | Flask/Funnel Heating Mantle with SS liner, 500 to 5000 mL
5000 | 230 | Flask/Funnel Heating Mantle with SS liner, 2000 to 5000 mL
50 | 115 | Flask/Funnel Heating Mantle, 10 to 50 mL
50 | 230 | Flask/Funnel Heating Mantle, 10 to 50 mL
250 | 115 | Flask/Funnel Heating Mantle, 100 to 250 mL
250 | 230 | Flask/Funnel Heating Mantle, 100 to 250 mL
1000 | 115 | Flask/Funnel Heating Mantle, 500 to 1000 mL
1000 | 230 | Flask/Funnel Heating Mantle, 500 to 1000 mL
5000 | 115 | Flask/Funnel Heating Mantle, 2000 to 5000 mL
5000 | 230 | Flask/Funnel Heating Mantle, 2000 to 5000 mL

Characteristics / Technical Specifications

• Brand: Cole-Parmer®
• Series: HM-200
• Maximum element temperature: 842°F (450°C)
• Insulation: ceramic fiber (keeps housing cool)
• Housing material: chemical-resistant polypropylene
• Controls: built-in power controller with dial markings 1–10
• Indicators: "Power on" and "Heater on" lights
• 36101-series: stainless steel liner over heating element (spill protection, easier cleaning)
• 36104-series: includes safety earth (ground) screen
• Support rod clamp: accepts 1/2" rod (not on 5000‑mL models)
• Designed for use with 60° funnels and a wide variety of flasks (base opening accommodates these)
• Number of product variations listed: 12
• Displayed price range (USD): 623.00 – 1,600.00
