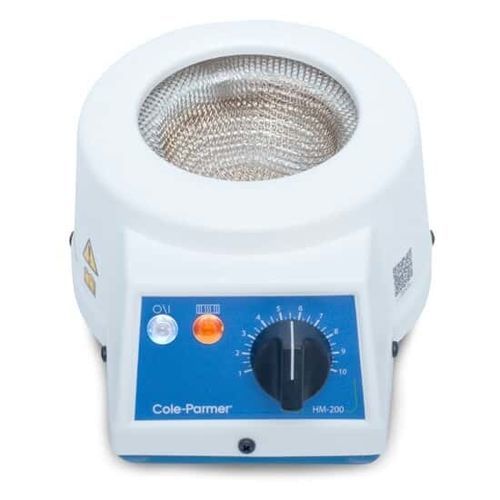

Analog heating mantle HM-200

with regulatormultiple-volume

Product overview
Cole-Parmer® HM-200 Series heating mantles deliver controlled heating for round-bottom flasks from 50 mL to 5000 mL, with a maximum operating temperature of 450°C. The unit uses a replaceable coiled heating element suspended within a thermal insulating cartridge for efficient heat transfer and flask support. The chemical-resistant polypropylene housing remains safe to the touch.

Key features

• Built-in power controller with dial markings 1–10 for repeatable settings
• Indicator lights: amber 'heater on' and clear 'power on'

Available configurations (selection)
Flask capacities available: 50, 100, 250, 500, 1000, 2000, 3000, 5000 mL. Power options: 115 VAC and 230 VAC (model-dependent). Number of product variations on page: 16. Price range (USD): $507.00–$1,295.00.

Technical specifications

• Maximum temperature: 450°C (842°F)
• Thermal insulating cartridge for maximum heat transfer and support
• Replaceable coiled heating element suspended within cartridge
• Built-in power controller with dial markings 1–10
• Indicator lights: 'heater on' (amber) and 'power on' (clear)
• Chemical-resistant polypropylene housing (safe to the touch)
• Ventilation slots and ceramic-fiber insulation to keep exterior cool
• Safety earth (ground) screen and double fuses
• Available flask capacities: 50, 100, 250, 500, 1000, 2000, 3000, 5000 mL
• Power options: 115 VAC and 230 VAC (model-dependent)
• Number of product variations on page: 16
• Price range (USD): $507.00 - $1,295.00
