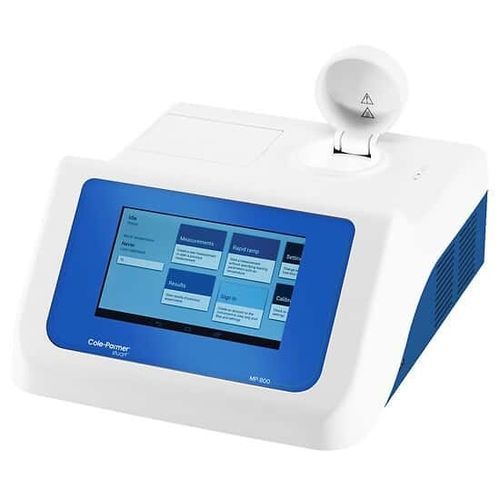

Automatic melting point instrument MP-800

digitalwith touch screen

Overview
Capture and display video of sample melts on the 7" (17.8 cm) color touch-screen or download data and video files to a PC or USB drive.

Key features

• Advanced digital image processing to accurately identify melting points
• Large 7" color touch-screen with intuitive Android™-based menu
• Analyze up to three capillary samples simultaneously to increase throughput
• 8 GB internal storage holds approximately 300 melt files, including videos with temperature stamps
• Programmable ramp rate from 0.1 to 20 °C in 0.1 °C increments

Functional description
The MP-800 Series combines advanced measurement features with a familiar, easy-to-use interface suitable for pharmaceutical, raw material and quality control laboratories. Use the touchscreen to configure methods, start runs, view live video and review stored melt recordings. The rapid ramp mode enables a quick scan of the full temperature range for unknown samples.

Recordings include an embedded temperature stamp. Users can leave the system running and review video later on the built-in display or transfer videos and reports to a USB flash drive or PC. An optional printer is available for direct printing of results.

Capillary storage and handling
Integrated storage compartment for unused capillaries includes a glass cutter to open sealed capillaries and a safe area to hold three prepared capillaries away from the heat source.

Technical specifications

• Series / Model: MP-800 Series
• Display: 7" (17.8 cm) color touch-screen
• Imaging: Digital image processing; capture and save videos (video includes temperature stamp)
• Sample throughput: Up to 3 samples simultaneously
• Storage: 8 GB internal (~300 melt files including videos)
• Ramp rate: 0.1 °C to 20 °C, adjustable in 0.1 °C increments
• Rapid ramp mode: Fast scan of full temperature range
• Data export: Download videos and reports to USB; optional printer for direct printing
• Capillary storage: Compartment with glass cutter and holder for three prepared capillaries
• Platform / OS: Android™-based menu system
• Max temperature (for listed variants): 400 °C
• Power (for listed variants): 120 / 230 VAC
