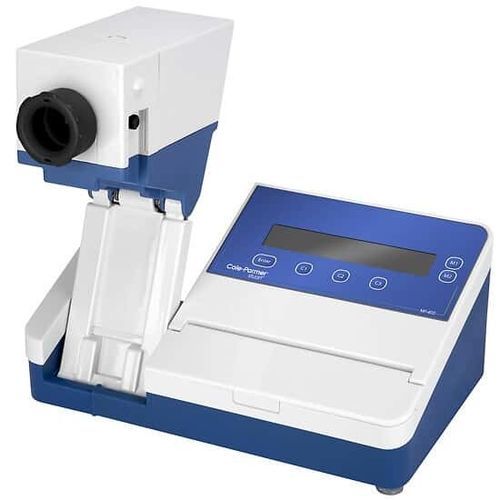

Digital melting point instrument MP-400

with optical microscope

Product Overview

• Digitally measure three melting points simultaneously
• Test three capillary samples at once to increase lab throughput
• Maximum temperature 400°C with 0.1°C resolution
• Variable ramp rate from 0.5 to 10°C/min adjustable in 0.1°C increments after initial warm-up
• Magnifying lens with integrated illumination for clear melt observation
• Store up to seven temperature readings per capillary and save up to three methods
• Two-stage adjustable viewing head for ergonomic positioning

Details
Select, measure, and display temperature digitally to eliminate the need for a glass thermometer. The instrument accepts three capillaries for simultaneous testing; melts are observed through a magnifying lens with built-in illumination. Set a plateau temperature for unattended initial warm-up; after the plateau is reached the heating rate continues between 0.5 and 10°C (adjustable in 0.1°C increments) to determine melting points with improved accuracy. Save and recall up to seven temperature readings per capillary and store three repeatable methods. A 5-pin mini DIN socket enables printer connection (printer sold separately). The viewing head adjusts forward/backward and tilts up to 126° for operator comfort. A capillary storage compartment and a glass capillary cutter are included. Full access to the heating block simplifies cleaning and maintenance.

Product variants (summary)
EW-03011-48 (0301148) — Cole-Parmer MP-400D High-Temperature, High-Resolution Digital Melting Point Apparatus with IQ/OQ documentation. Max Temperature (°C): 400 | Power: 115 / 230 VAC | Temperature Resolution: 0.1°C | Price: $3,000.00 USD / Each
EW-03011-49 (0301149) — Cole-Parmer MP-400D High-Temperature, High-Resolution Digital Melting Point Apparatus. Max Temperature (°C): 400 | Power: 220 VAC | Temperature Resolution: 0.1°C | Price: $2,805.00 USD / Each

Technical specifications

• Max temperature: 400°C
• Temperature resolution: 0.1°C
• Variable ramp (heating) rate: 0.5–10°C after warm-up, adjustable in 0.1°C increments
• Simultaneous testing: 3 samples
• Data: Save and recall up to 7 temperature readings per capillary; store up to 3 methods
• Viewing: Magnifying lens with built-in illumination
• Head adjustment: two-stage (forward/back and tilt up to 126°) for user comfort
• Connectivity: 5-pin mini DIN socket for printer (printer sold separately)
• Accessories: Capillary storage compartment and glass capillary cutter included
• Maintenance: Full block access for easy cleaning
• Available power configurations by variant: 115/230 VAC and 220 VAC
