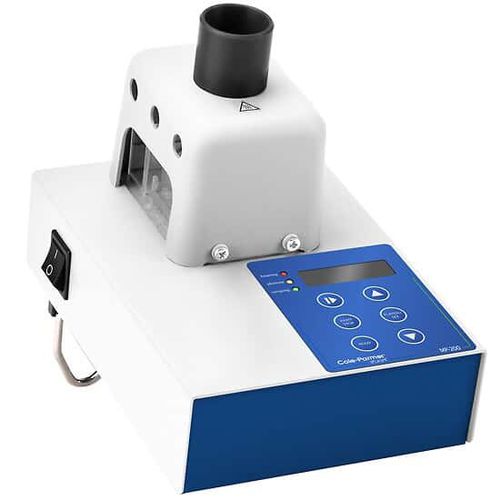

Automatic melting point instrument MP-200

digitalwith optical microscope

Overview
Compact digital melting point apparatus designed for safe, repeatable melting point determination in laboratory and production environments. Temperature is selected, measured, and displayed digitally to remove reliance on glass thermometers. The unit tests two samples simultaneously and provides magnified viewing with integrated illumination. Plateau preheat enables unattended warm-up before a slower heating ramp for precise melt point determination.

Key features

• Digital temperature selection, measurement, and display for repeatability and accuracy.
• Magnifying lens with built-in illumination for clear observation of melting.
• Simultaneous testing of two samples to improve throughput.
• Plateau preheat setting for unattended initial warm-up.
• Extendable rear feet to optimize viewing angle.

Description
Set a plateau temperature for initial warm-up; after the plateau the instrument continues heating at a slower, controlled rate to reach the melt temperature, improving measurement accuracy. The MP-200 Series is intended for straightforward, repeatable melting point determination with operator safety and laboratory productivity in mind.

Technical specifications

• Brand: Cole-Parmer
• Series: MP-200 Series
• Samples per run: 2 (simultaneous testing)
• Viewing: Magnifying lens with built-in illumination
• Adjustable viewing angle: Extendable back feet
• Warm-up: Plateau temperature setting for unattended initial warm-up
• Heating control: After plateau warm-up, heating continues at a slower rate to melting temperature for improved accuracy
• Product page ID: 59844
• Available product options (examples):

  • EW-03011-40 (SKU 0301140) — 120 VAC; Heat-up: 20°C/min; To melt: 2°C/min; Temperature resolution: 1°C; Price: $1,425.00; Availability: In stock
  • EW-03011-41 (SKU 0301141) — 240 VAC; Heat-up: 20°C/min; To melt: 2°C/min; Temperature resolution: 1°C; Price: $1,120.00; Availability: Out of stock
  • EW-03011-45 (SKU 0301145) — 120 VAC (High resolution); Heat-up: 20°C/min to plateau; To melt: 1 and 10°C/min; Temperature resolution: 0.1°C; Price: $1,700.00; Availability: In stock
  • EW-03011-47 (SKU 0301147) — 230 VAC (High resolution); Heat-up: 20°C/min to plateau; To melt: 1 and 10°C/min; Temperature resolution: 0.1°C; Price: $1,635.00; Availability: Out of stock
