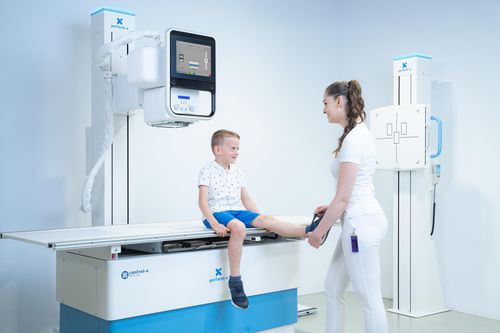

Radiography system F200

digitalfor multipurpose radiographywith table

The F200 floor-mounted system increases examination precision and throughput with its auto-tracking functionality between the tube assembly and, respectively, the wall stand and the table receptor. KEY FEATURES 1-way (optional 2-way) vertical auto-tracking between tube assembly and wall stand receptor (receptor: master, tube: slave) 2-way vertical auto-tracking between tube assembly and table receptor (dynamic master/slave function) 1-way auto-centering between tube assembly and table receptor (tube: master, receptor: slave) motorized vertical movement of X-ray tube assembly (with manual override) manual horizontal movement of tube stand manual tube rotation on the horizontal axis motorized Phoenix 2 elevating radiographic table manual vertical movement of wall stand motorized table receptor auto-centering (with manual override) longitudinal and vertical SID measurement optional manual column rotation optional manual transverse tube arm movement optional manual or motorized receptor tilting for wall stand
