Radiography system F300

digitalfor multipurpose radiographywith table

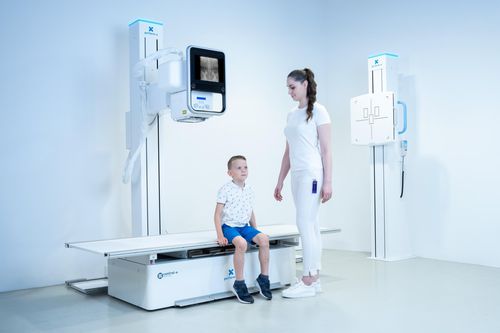

The F300 floor-mounted system takes 3 individual overlapping images and combines them into one seamless study. The Procedure is performed with constant focus and a rotating x-ray tube. A stitching stand is available to assist frail patients. Our Perform-X advanced systems feature the TS99(N) Tube Stand, the WS99(N) Wall Stand and the Phoenix 2 Elevating Radiographic Table. KEY FEATURES auto-stitching for wall stand (with fixed focus position) with optional stitching stand 2-way vertical auto-tracking between tube assembly and wall stand receptor (dynamic master/slave function) 2-way vertical auto-tracking between tube assembly and table receptor (dynamic master/slave function) 1-way auto-centering between tube assembly and table receptor (tube: master, receptor: slave) motorized vertical movement of X-ray tube assembly (with manual override) manual horizontal movement of tube stand motorized tube rotation on the horizontal axis motorized vertical movement of wall stand motorized Phoenix 2 elevating radiographic table motorized table receptor auto-centering (with manual override) longitudinal and vertical SID measurement optional manual column rotation optional manual or motorized receptor tilting for wall stand
