Emergency cart TR900-14-XX

hospitalendoscopylifting

Product overview

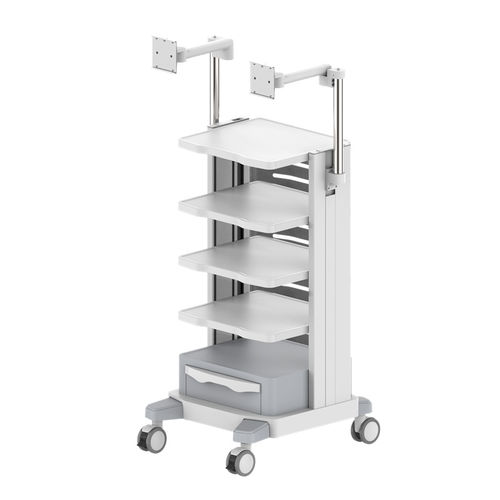

CORITON TR900 is an endoscopy cart designed for hospital wards, outpatient clinics, emergency departments and mobile clinical workflows. It provides stable device support, organised accessory storage and reliable mobility for procedures, diagnostics and patient monitoring. The product supports OEM/ODM mounting projects that require practical installation and hygienic equipment integration.

Specifications (summary)

• Trolley top to ground max height: 1400 mm
• Table outside size: 511×470 mm
• Usable table size: 473×323 mm
• Maximum table size (incl. thickness): 510×470×30 mm
• Height adjust method: Mechanical lifting
• Height adjustment range: 400 mm

Basic information
Trolley top to ground max height: 1400 mm
Table outside size: 511×470 mm
Usable table size: 473×323 mm
Maximum table size: 510×470×30 mm
Table max load: 25 kg
Height adjust method: Mechanical lifting
Height adjustment range: 400 mm
Materials: Aluminum, steel plate, ABS/PC
Casters: 4" (all with brake)

Recommended accessories

• Extended Pivot Arm
  • Arm length: 650 mm
  • Swivel range: ±90°
  • Tilt range: 0 ~ -25° or 0 ~ -120°
  • Total arm max load: 30 kg
  • Tilt mechanism max load: 15 kg
  • Application: Patient monitor, display
• Pivot Arm
  • Arm length: 334 mm
  • Swivel range: ±90°
  • Tilt range: 0 ~ -25° or 0 ~ -120°
  • Total arm max load: 30 kg
  • Tilt mechanism max load: 15 kg
  • Application: Patient monitor, display
• Metal Hook
  • Specification: see product page
• Tabletop
  • Desktop peripheral size: 511×538 mm
  • Actual desktop size: 473×323 mm
  • Material: Steel plate, ABS/PC

Technical specifications

• Model / Series: TR900
• Trolley max height (top to ground): 1400 mm
• Height adjustment range: 400 mm (mechanical lifting)
• Table outside size (peripheral): 511×470 mm
• Table usable size: 473×323 mm
• Maximum table size (with thickness): 510×470×30 mm
• Table maximum load: 25 kg
• Materials: Aluminum, steel plate, ABS/PC
• Casters: 4" (all with brake)
• Recommended arm accessories: Extended Pivot Arm (650 mm, load up to 30 kg), Pivot Arm (334 mm, load up to 30 kg)
