Emergency cart TR900-09276

hospitalendoscopytransport

Product overview

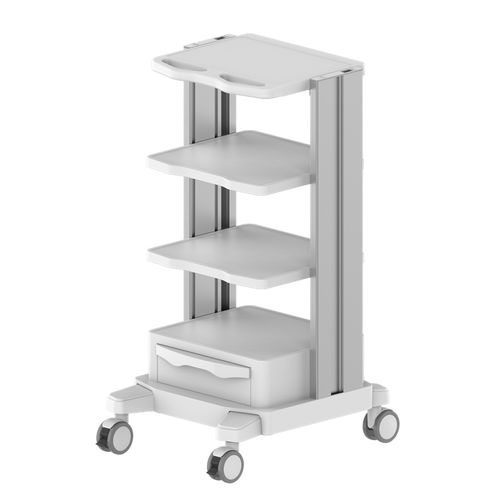

CORITON TR900 is an endoscopy cart designed for clinical environments such as hospital wards, outpatient clinics, emergency departments and diagnostic units. It provides stable device support, organised accessory storage and smooth mobility for mobile workflows. The cart supports OEM/ODM integration and mounting solutions that require practical installation and hygienic equipment integration.

Key specifications

• Trolley top to ground max height: 1200 mm
• Table outside size: 511 × 470 mm
• Usable surface: 473 × 323 mm
• Maximum table size: 510 × 470 × 30 mm
• Table max load: 25 kg
• Height adjust method: Mechanical lifting
• Height adjustment travel: 400 mm
• Material: Aluminum alloy, steel plate, ABS/PC
• Casters: 4" with brakes

Basic information
Trolley top to ground Max height: 1200 mm
Table outside size: 511 × 470 mm
Usable size: 473 × 323 mm
Maximum table size: 510 × 470 × 30 mm
Table max load: 25 kg
Height adjust method: Mechanical lifting
Height adjustment travel: 400 mm
Material: Aluminum, steel plate, ABS/PC
Casters: 4" (all with brakes)

Recommended accessories

• Probe cup holder - B015-11957 / COR-0054-Umedwings — Round hole Ø16.5 mm; Ø14 mm; Ø9.5 mm; Pole height: 650 mm
• Probe cup holder - B015-10193 / COR-0052-Umedwings — Size: Ø27 mm; Depth: 80 mm; Material: ABS
• Probe cup holder - B015-05631 / COR-0057-Umedwings — Round hole Ø29.6 mm; Ø38.6 mm; Pole height: 500 mm
• Gas cylinder holder - B001-12466 / COR-0056-Umedwings — Diameter: 151 mm; Material: sheet metal; Finish: white
• Pivot arm - B001-07861 / COR-0058-Umedwings — Arm length: 334 mm; Swivel: ±90°; Tilt range: 0 to -25° or 0 to -120°; Arm max load: 30 kg; Tilt mechanism max load: 15 kg; Application: patient monitor / screen

Technical specifications

• Trolley top to ground max height: 1200 mm
• Height adjustment travel: 400 mm
• Height adjust method: Mechanical lifting
• Usable surface: 473 × 323 mm
• Table outside / max size: 511 × 470 mm / 510 × 470 × 30 mm
• Table max load: 25 kg
• Materials: Aluminum alloy, steel plate, ABS/PC
• Casters: 4" with brakes
