Wall-mounted computer workstation WM500-100-08

medicallaptoptilting

Product overview

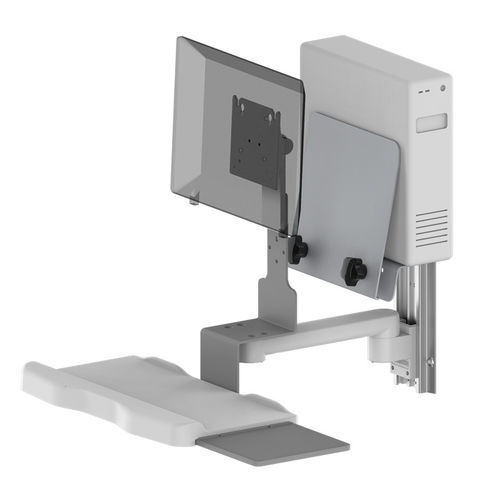

CORITON WM500 is a wall-mounted medical workstation designed to support a computer, display and keyboard in clinical environments. It is intended for use in hospital wards, outpatient clinics, emergency departments and other care areas where compact, secure and hygienic device mounting is required. The unit supports OEM/ODM integration for medical trolleys and mounting projects.

Key features

• Wall-mounted arm for monitor and keyboard with concealed cabling
• Compact 302mm arm ideal for space-constrained clinical rooms
• Supports monitors up to 24in and up to 10 kg
• Keyboard tray capacity up to 2 kg with max size 158 × 442 mm
• Durable aluminum alloy construction suitable for clinical cleaning

Technical specifications

• Arm length: 302mm
• Swivel range: + - 90°
• Tilt range: 0~ -25° or 0~ -120°
• Screen size: 24in
• Screen max weight: 10kg
• Keyboard max weight: 2kg
• Keyboard max size: 158*442mm
• Channel: Optional channel 482mm
• Concealed cabling: Yes
• Material: Aluminum alloy

Installation & compatibility
Designed for wall mounting with an optional 482mm channel. Compatible with standard clinical monitors and keyboard trays within specified size and weight limits. Suitable for integration into medical carts and fixed mounting projects requiring reliable movement between care areas. OEM/ODM adjustments available on request.

Materials & maintenance
Constructed from aluminum alloy with concealed cable routing to improve hygiene and reduce snag points. Surfaces can be cleaned with standard clinical disinfectants following supplier recommendations. Regular inspection of mounts and fasteners is advised for safety and longevity.
