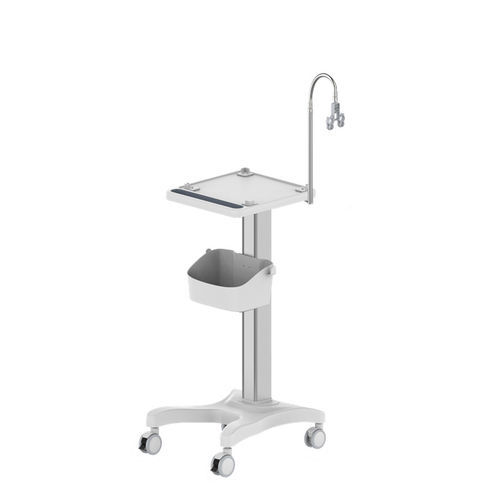

ECG trolley TR700-XXX

emergencyintensive carehospital

Page Code: KRT-P-4191

Overview
TR700-XXX is an ECG and diagnostic equipment trolley by CORITON designed for clinical device mounting, safe mobile positioning and standardized procurement. The configuration focuses on stable support, orderly cable routing and a compact, serviceable structure to help hospitals, distributors and OEM partners evaluate and integrate the product quickly.

Typical application scenarios

• Hospitals and clinical departments: daily equipment placement at bedside, ward rounds and mobile diagnostic workflows while keeping devices accessible to clinicians.
• Emergency and critical care: fast, predictable positioning and easy cleaning in time-sensitive environments.
• Distributor and project procurement: clear model reference and standardized configuration for specification comparison, quoting and tender alignment.
• OEM / ODM integration: reference platform for custom device mounting, branding and accessory adaptation.

Device compatibility and workflow value
TR700-XXX supports varied ECG/diagnostic monitors and accessories with a stable mobile base and dedicated tabletop positioning pad. It reduces installation uncertainty and provides procurement teams with clear selection criteria for clinical workflows.

Key configuration

• Reference model: TR700-XXX
• Adjustment: stable clinical positioning
• Base / mounting: stable mobile base for predictable movement and routine cleaning
• Tabletop: positioning pad for diagnostic equipment; recommended ABS tabletop 430 × 400 mm (effective area 343 × 379 mm)

Design highlights

• Stable medical structure: engineered for reliable device support and long-term clinical use.
• Efficient clinical operation: layout supports fast access, organized accessories and hygienic maintenance.
• Procurement-friendly identification: page code and model reference simplify auditing and comparison across suppliers.
• OEM-ready platform: clear interface for accessory attachment and workflow-specific customization.

Recommended accessories

• ECG Cable Arm - B001-07887 / COR-0000-Umedwings
  • Material: aluminum alloy
  • Surface treatment: anodic oxidation — silver
• ECG cable arm with magnetic storage cup
  • Material: aluminum alloy / ABS / PC
  • Availability: available on request
• ECG cable arm-2
  • Material: aluminum alloy / ABS / PC
  • Availability: available on request
• Bin with cable hooks
  • Dimensions: 340 × 213 × 149 mm
  • Material: ABS
• ABS tabletop 430 × 400 mm - A016-11066 / COR-0044 - Umedwings
  • Positioning pads included
  • Material: integral-molded ABS
  • Overall dimensions: 430 × 400 mm (L × W)
  • Effective working area: 343 × 379 mm
• Power Management Box - Metal - 350 × 110 × 100 mm
  • Stated size: 352 × 245 × 200 mm
  • Maximum drawer load: 2 kg
• Probe Cup Holder
  • Upper hole diameter: 60 mm
  • Lower holes: 1st 20 mm, 2nd 32 mm
  • Depth: 60 mm
  • Material: ABS

Procurement keywords

• ECG trolley
• TR700-XXX
• ECG cart
• diagnostic workflow
• tabletop positioning
• CORITON

Technical specifications

• Page Code: KRT-P-4191
• Model: TR700-XXX
• Primary use: ECG and diagnostic equipment trolley for clinical mounting and mobility
• Adjustment: stable clinical positioning
• Base / mounting: stable mobile base designed for predictable movement and routine cleaning
• Tabletop: positioning pad; recommended ABS tabletop 430 × 400 mm (effective area 343 × 379 mm)
• Typical accessory materials: aluminum alloy, ABS, PC
• Accessory examples and key dimensions: bin with cable hooks (340 × 213 × 149 mm); power management box (stated 352 × 245 × 200 mm; drawer max load 2 kg)
• Design focus: reliable device support, practical cable routing and clean product structure for procurement and OEM integration
