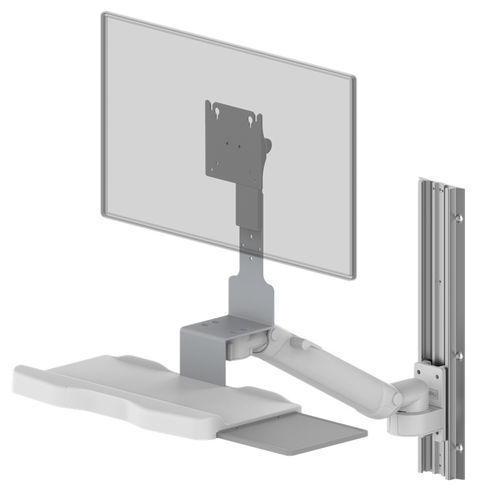

Medical computer workstation WM800 series

laptopwall-mountedheight-adjustable

Product overview
CORITON variable-height wall workstation arm designed for mobile computer workstations and medical mounting applications. Suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows that require stable device support, organised accessory integration and smooth repositioning between care areas. Supports OEM/ODM trolley and mounting projects with straightforward installation and durable, clean equipment integration.

Variable Height Arm With Wall Workstation Specification

• Height adjust method: height locked/released by single-click
• Height adjustment: 450mm
• Total arm maximum load options: 1000N (gas spring load: 2–5 Kg), 1500N (5–8 Kg), 2000N (8–12 Kg)
• Arm length: 524mm
• Swivel range: ±90°
• Tilt range: 0–200°

Recommended accessories

• Flangeless wiring channel with removable cover
  • Material: Aluminum
• Cable management duct – suitable for WM800 arm
  • Material: ABS
  • Used to add cable management function to WM800 arm and improve overall aesthetics

Basic Information
Model: WM800-08525 / WM800-08524
Channel: Optional 482mm / 320mm
Arm length: 524mm
Height adjust method: Single-click lock/release
Height adjustment: 450mm
Swivel range: ±90°
Tilt range: 0–200°
Total arm maximum load: 1000N (gas spring 2–5 Kg) / 1500N (5–8 Kg) / 2000N (8–12 Kg)
Screen size: up to 24 inch
Screen max weight: 10 Kg
Keyboard max weight: 2 Kg
Keyboard max size: 158×442mm
Concealed cabling: Yes (optional channels: 482mm / 320mm)
Color: Medical White
Material: Aluminum alloy with die-cast aluminum core
Net weight: 7.5 Kg
Application: anesthesia machines, patient monitors, screens; suitable for wards, outpatient, ED, diagnostic areas and mobile clinical workflows

Technical specifications

• Model: WM800-08525 / WM800-08524 (WM800 series)
• Arm length: 524mm
• Height adjustment range: 450mm, locked/released by single-click
• Swivel range: ±90°
• Tilt range: 0–200°
• Total arm maximum load options: 1000N (2–5 Kg gas spring), 1500N (5–8 Kg), 2000N (8–12 Kg)
• Screen compatibility: up to 24 inch, max 10 Kg
• Keyboard capacity: up to 2 Kg, max size 158×442mm
• Concealed cabling: Yes (optional channels: 482mm / 320mm)
• Color: Medical White
• Material: Aluminum alloy with die-cast core
• Net weight: 7.5 Kg
• Primary applications: anesthesia machines, patient monitors, screens; suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows
