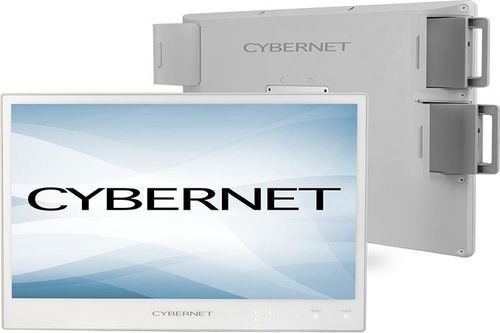

Intel® Core i7 medical panel PC CyberMed G24B

Intel® Core i5Intel® Core™ Ultra 7Intel® Core™ Ultra 5

Overview
The CyberMed G24B is a 24-inch fanless medical cart computer engineered for continuous clinical use. It provides hot-swap battery capability for uninterrupted operation, an antimicrobial sealed front bezel for infection control, and a fanless design for reliable 24/7 performance. The system is intended for mobile carts or wall mounts in clinical environments and supports integration with enterprise imaging and major EMR systems.

Key Product Highlights

• 24/7 hot-swappable power with three batteries enabling continuous uptime and battery replacement during operation
• Antimicrobial housing and IP65 sealed front bezel designed for aggressive disinfection with hospital-grade wipes
• Fanless architecture to minimize failure rates in clinical settings
• Optional 2K (2560x1440) wide-view clinical display available on the 24-inch model
• Integrated AI NPU accelerator option for edge AI workloads
• Optional DC Out for peripheral power delivery to run devices such as barcode scanners or label printers
• EMR-ready and SSO-capable with integrated RFID and biometric authentication options

Designed Clinical Benefits

• Eliminates downtime from "low battery" events by sequential battery drain and hot-swap replacement without application shutdown or data loss
• Reduces total cost of ownership by enabling non-powered carts and standardizing hardware across departments
• Industrial-grade components and fanless design extend product lifecycle and lower annual failure rates

Specifications / Technical Specifications

• Display: 1920x1080 (FHD) | 16:9 | 178°/178° viewing angle; optional 2560x1440 (2K) for 24-inch
• CPU Support: Latest Intel® Core i5 / Core i7 (options include Intel® Core™ Ultra 5 and Ultra 7, with vPro options)
• Memory: 2x DDR5 SO-DIMM sockets, up to 64GB (options: 8GB, 16GB, 32GB, 64GB)
• Operating System: Windows 11, Windows IoT (LTSC), Linux
• Video & Graphics: Integrated Intel Graphics
• Touch Screen: PCAP multi-touch with optional anti-glare
• Networking: 2x 2.5 Gigabit LAN (Intel i226LM and i226V)
• Wireless: Intel WiFi 7 + Bluetooth 5.4 (Tri-Band BE200; vPro wireless option available)
• Expansion Slots: 1x full-size mPCIe; 1x M.2 A/E key
• Storage: 1x 6Gbps SATA III (2.5") and 1x M.2 B/M key for NVMe SSD (options up to NVMe 2TB / SATA 2TB)
• TPM: Version 2.0 standard
• Battery: 3x hot-swap batteries with up to 16 hours runtime (sequential drain and hot-swap supported)
• Power Supply: Medical-grade PSU, universal input 100~240V AC 50-60Hz; output 19V; 12V/24V support with optional DC converter
• DC Power Out: Optional DC output for peripheral devices (example: up to 26W continuous)
• IP Rating: IP65 sealed front bezel; IPX1 back cover
• Pressure / Altitude: 700 to 1060 hPa (0~3000 meters)
• Dimensions (L x W x D): 22.32" x 14.23" x 2.02"
• Weight: 14.8 lbs (base) | 17.2 lbs with three hot-swap batteries
• Wall Mount: Supports 100mm VESA mounting holes
• I/O Ports: 4x USB 3.2 Gen1; 2x USB 2.0 (side); 1x USB-C (10 Gbps) supporting up to 15W PD (5V/3A); 1x RS-232/422/485 (optional up to 6 ports); 1x DisplayPort; 1x 4-pin DIN power jack
• Audio: Realtek HD Audio; two built-in 3.0W speakers; one combo jack for line out / mic
• Security & Authentication: SSO-ready; optional integrated RFID and biometric scanners; optional FIPS-201 certified smart card reader
• Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1; FCC Class B; CE; Energy Star; RoHS; WEEE; REACH
• Warranty: 3 years standard (US) with optional plans up to 5 years
