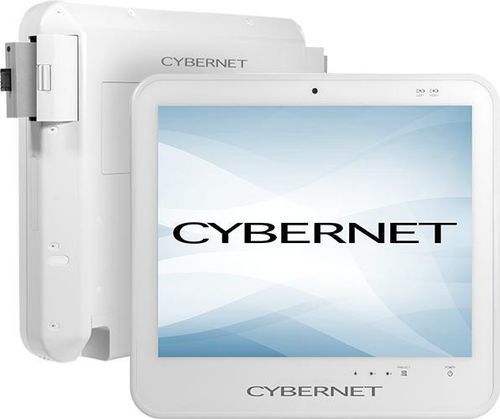

Intel® Core™ Ultra 7 medical panel PC CyberMed NB19

Intel® Core™ Ultra 5for computer cartsfor healthcare facilities

Overview
With the CyberMed NB19, non-powered carts become high-performance mobile clinical workstations. The system integrates hot-swappable batteries and a sealed, fanless design to provide continuous uptime for clinicians, enabling bedside charting and safer patient interactions without reliance on power cords. The NB19 is optimized for demanding EMR workflows and includes AI acceleration and medical-grade features for near-patient use.

Key Features

• Hot-swap battery system (2 hot-swap batteries standard) enabling continuous operation on non-powered carts
• 19" display with 5:4 aspect ratio and wide-view display technology
• AI NPU accelerator combined with integrated Intel graphics for clinical AI workloads
• Support for up to 64GB DDR5 5600MHz memory (2x SO-DIMM sockets)
• Multiple CPU options including Intel Core Ultra series (configurable Ultra 5 / Ultra 7)
• PCAP multi-touch touchscreen available; optional anti-glare or embedded privacy filter
• Dual 2.5GbE LAN ports (Intel i226LM / i226V) and Intel WiFi 7 + Bluetooth 5.4
• Optional DC power-out port to power peripherals (barcode scanners, printers, webcams)
• IP65 sealed front bezel and IPX1 back cover for frequent chemical disinfection
• Medical-grade power supply (100~240V AC input; supports DC18V-19V output; optional 12V/24V DC converter)
• TPM 2.0 standard and enterprise-ready BIOS/OS configuration options
• Silent fanless engineering to avoid intake/exhaust of dust and airborne contaminants
• Antimicrobial housing formulation for infection-control environments
• EMR Ready: optimized for Epic, Oracle Cerner and all major EMRs

Technical Specifications
Display: 1280 x 1024 | 5:4 (4:3) | 250 nits | 170°/170° viewing angle | 1000:1 contrast ratio
CPU Support: Latest Intel® i5 / i7 processors (configurable options include Intel® Core™ Ultra 5 and Ultra 7 variants)
Memory: 2x DDR5 SO-DIMM sockets, populated up to 64GB (supports DDR5 5600MHz)
Operating System: Windows 11, Windows IoT, Linux (configurable OS options available)
Video & Graphics: Integrated Intel graphics + AI NPU accelerator
Touch Screen: PCAP multi-touch with optional anti-glare technology or embedded privacy filter
Networking: 1x 2.5Gigabit LAN (Intel i226LM) and 1x 2.5Gigabit LAN (i226V)
Wireless: Intel WiFi 7 + Bluetooth 5.4 (configurable tri-band wireless options, vPro variants available)
Expansion Slots: 1x mPCIe half-size slot | 1x M.2 A/E key slot | 1x M.2 2230 B/M key slot
Storage: 1x 6Gbps SATA III port; configurable 2.5" SSD options (256GB, 512GB, 1TB, etc.)
TPM: Version 2.0 standard
Battery: 2 hot-swap batteries (standard) with up to 21 hour run time (battery life varies by configuration and usage); battery warranty and recommended replacement intervals noted below
Power Supply: Medical-grade power supply, universal input 100~240V AC 50-60Hz; supports DC18V-19V output (6.3A adapters); optional DC converter for 12V/24V systems
DC Power Out: Optional DC power-out for powering external devices; delivers up to 26W continuous power to peripherals (connector options available)
IP Rating: IP65 sealed front bezel, IPX1 back cover
Environment: Operating pressure 700 to 1060 hPa (0–3000 meters); operating temperature 0°C to 35°C; relative humidity 10%–90% non-condensing
Dimensions: 17.75" x 16.50" x 3.00" (L x W x D)
Weight: 15.25 lbs without batteries | 17.25 lbs with 2 batteries
Wall Mount: Supports 100mm VESA mounting holes
I/O Ports: 4x USB 3.2 | 2x USB 2.0 | 1x USB-C | 1x RS232/422/485 (optional up to 6) | 1x DisplayPort | 1x 4-pin DIN power jack
Audio: Realtek High Definition Audio; two built-in speakers (3.0 W each) and one combo audio jack for line out/microphone
Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1, FCC Class B, CE, Energy Star, RoHS, WEEE, REACH
Warranty: 3 years standard (U.S. customers) with optional plans up to 5 years; battery warranty: 1 year. Manufacturer strongly recommends battery replacement every two years to maintain performance.

Designed for Healthcare Use
The CyberMed NB19 is engineered for high-traffic clinical environments: sealed front bezel and antimicrobial housing support frequent cleaning with hospital-grade disinfectants; fanless design prevents airborne intake and ensures silent operation; integrated peripheral power reduces cord clutter on mobile workstations.

Model / Technical specifications

• Model: CyberMed NB19
• Screen: 19" 5:4, 1280x1024
• CPUs supported: Intel® Core™ Ultra 5 / Ultra 7 options
• Max memory: Up to 64GB DDR5 (2x SO-DIMM)
• Storage: 2.5" SATA SSD options (configurable)
• Battery: 2 hot-swap batteries; up to 21h runtime (typical)
• Networking: Dual 2.5GbE + Intel WiFi7 / Bluetooth 5.4
• Front protection: IP65 sealed bezel
• Security: TPM 2.0, SSO and optional Imprivata RFID support
• I/O: USB 3.2, USB 2.0, USB-C, DisplayPort, RS232/422/485 (optional), 4-pin DIN power jack
• Certifications: IEC/UL/cUL 60601-1 family plus FCC, CE, Energy Star, RoHS, WEEE, REACH
• Warranty: 3 years standard; battery 1 year (replacement recommended every 2 years)
