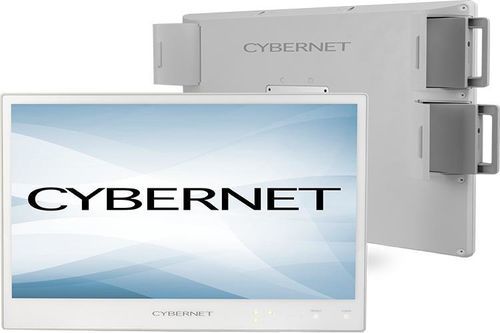

Intel® Core i7 medical panel PC CyberMed G22B

Intel® Core i5Intel® Core™ Ultrafor computer carts

Product Overview
The CyberMed G22B is a fanless medical cart computer engineered for continuous clinical workflows. It combines three hot‑swap batteries for uninterrupted operation, a 22" FHD wide‑view display and support for the latest Intel Core i5/i7 (Core™ Ultra) processors to enable secure EMR access and cart‑mounted clinical applications.

Key Features

• Three hot‑swappable batteries enabling continuous operation and up to 16 hours sequential runtime
• Fanless medical‑grade design with antimicrobial housing and IP65 sealed front bezel for aggressive disinfection
• 22" FHD AHVA wide‑view display with optional anti‑glare and privacy filters
• Support for latest Intel® i5 / i7 processors with integrated Intel graphics
• 2x DDR5 SO‑DIMM sockets, configurable up to 64 GB
• M.2 NVMe SSD support and 6 Gbps SATA III port; NVMe capacity up to 8 TB
• Networking: dual 2.5 GbE LAN and Intel WiFi 7 + Bluetooth 5.4
• Optional DC power output to supply peripherals (webcam, scanners, small printers)
• Expansion: 1x full‑size mPCIe and 1x M.2 A/E key slot

Additional Highlights

• Medical‑grade power supply (100–240 V AC input; 19 V output) with optional 12 V/24 V DC converter
• SSO‑ready options: integrated RFID and biometric scanner for fast clinician login
• EMR‑ready integration; compatible with Epic, Oracle Cerner and major EMR systems
• Long product life cycle (5–7 years) and tested low failure rates (less than 0.5% year‑over‑year)
• Certifications: UL60601‑1, cUL60601‑1, IEC60601‑1, IEC60601‑1‑2, IEC62368‑1, FCC Class B, CE, Energy Star, RoHS, WEEE, REACH

Specifications

• Display: 1920×1080 FHD | 16:9 | 178°/178° viewing angle
• CPU Support: Latest Intel® Core i5 / i7 (Core™ Ultra family options)
• Memory: 2x DDR5 SO‑DIMM sockets, up to 64 GB
• Operating System: Windows 11, Windows IoT, Linux
• Graphics: Integrated Intel graphics
• Touch: PCAP multi‑touch, optional anti‑glare
• Networking: 2x 2.5 GbE LAN (Intel i226LM/i226V), Intel WiFi 7 + Bluetooth 5.4
• DC Power Out: Optional DC output, up to 26 W continuous
• Expansion: 1x full‑size mPCIe, 1x M.2 A/E key
• Storage: 1x M.2 B/M NVMe slot (up to 8 TB), 1x SATA III 6 Gbps
• TPM: 2.0
• Batteries: 3x hot‑swap (sequential drain), up to 16 hours runtime
• Power Supply: Medical grade 100–240 V AC 50/60 Hz → 19 V; 12 V/24 V support via optional converter
• IP Rating: IP65 front bezel; IPX1 rear
• Environmental: Pressure 700–1060 hPa (0–3000 m); Operating 0°C–35°C; RH 10%–90% non‑condensing
• Dimensions: 20.15" × 13.15" × 2.02" (L × W × D)
• Weight: 13.3 lb | 15.7 lb with three batteries
• Mounting: 100 mm VESA
• I/O: 4x USB 3.2 Gen1; 2x USB 2.0; 1x USB‑C (10 Gbps, PD 5 V/3 A); optional RS232/422/485; 1x DisplayPort; 1x 4‑pin DIN power jack
• Audio: Realtek HD, two 3.0 W speakers, combo jack
• Warranty: 3 years standard, optional up to 5 years (regional terms apply)
