Healthcare facility medical panel PC CyberMed PX22

fixedfull HDwaterproof

Overview

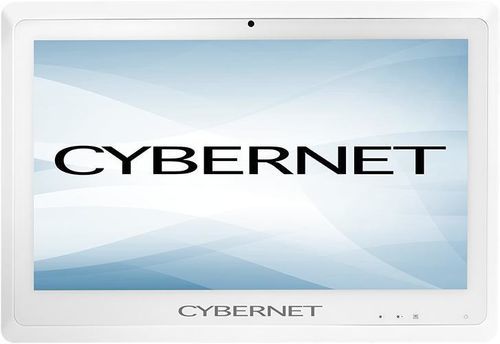

The CyberMed PX22 is a 21.5" medical-grade touchscreen monitor delivering Full HD imaging with an IP65 sealed front bezel and antimicrobial housing for routine spray-and-wipe and chemical disinfection. Designed for clinical point-of-care applications, the PX22 supports glove-friendly PCAP multi-touch, optional integrated DC power outputs for peripherals, and connectivity for bedside workflows and EMR charting.

Key Features

• 21.5" FHD (1920 x 1080), 16:9 aspect ratio, 250 cd/m² brightness
• PCAP multi-touch (glove-friendly, 10-point) with optional anti-glare filter
• IP65 sealed front bezel and antimicrobial housing for hospital-grade disinfection
• Optional integrated DC power module with 2x variable-voltage outputs to power external devices
• HDMI input and USB touch interface for easy integration
• Integrated rear-facing 2x2W speakers and WiFi passthrough/booster
• Optional embedded privacy/anti-glare filter (3M option)

Certifications & Safety
Compliant with IEC/UL/cUL 60601-1 family (near-patient electrical safety), IEC60601-1-2, EN60601-1, IEC62368-1; FCC Class B; CE; Energy Star; RoHS; WEEE; REACH.

Design & Deployment Highlights

• Flat front design for spray-and-wipe disinfection
• Touchscreen tuned for surgical and nitrile gloves, including use with moisture
• Slim profile with 75mm and 100mm VESA mounting support for wall, cart, or confined stations
• Designed for a 5–7 year product life cycle and long-term deployment consistency

Warranty
Standard 3-year warranty; optional extended plans up to 5 years (some terms apply for US customers).

Technical specifications

• Display: 1920 x 1080, 16:9, 250 nits, 178°/178° viewing angle, 3000:1 contrast ratio
• Touch Screen: PCAP multi-touch (glove-friendly), optional anti-glare technology
• DC Power Out: Optional module with 2 x variable-voltage DC outputs
• Viewing Angle: Horizontal 178°, Vertical 170°
• Colors: 16.7 million
• Brightness: 250 cd/m²
• Response Time: 25 ms
• Power Supply: 120W medical-grade PSU; Input 100–240V AC, 50–60Hz; supports 12V/24V with optional DC converter; DC output range 18–19V; 6.3A adapters
• IP Rating: IP65 sealed front bezel; IPX1 rear
• Dimensions (W x H x D): 21.75" x 14.50" x 1.92"
• Weight: 15.35 lbs
• Mounting: VESA 75mm & 100mm
• Operating environment: 0°C–35°C; RH 10%–90% non-condensing
• Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1, FCC class B, CE, Energy Star, RoHS, WEEE, REACH
• I/O: 1× HDMI In, 1× USB (touch), 1× 4-pin DIN power jack, 1× debug/service, 2× WiFi passthrough
• Audio: 2× 2W rear-facing speakers
• Warranty: 3 years standard; optional extension up to 5 years (US only)
