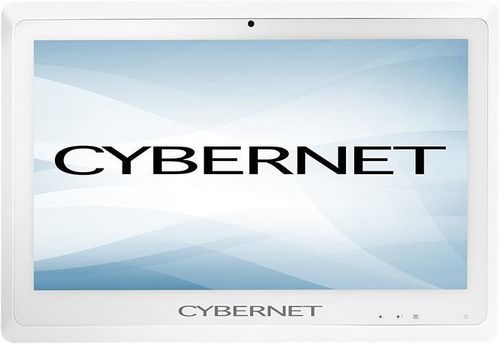

Medical display CyberMed PX24

diagnosticfull HD1920 x 1080

Product Overview
The CyberMed PX24 is a medical-grade 23.6" touchscreen monitor combining FHD imaging with an IP65-sealed front bezel and antimicrobial housing to support spray-and-wipe disinfection workflows. It is engineered for clinical point-of-care use, EMR charting and diagnostics, and integrates options for medical carts and workstations without compromising safety.

Key Features

• 23.6" FHD display (1920x1080)
• Glove-friendly PCAP 10-point multi-touch (optional anti-glare)
• IP65 sealed front bezel; IPX1 back cover for liquid protection
• Molded antimicrobial housing resistant to staining and microbial degradation
• Optional integrated DC power output (2x variable voltage) for peripherals
• Integrated 2-channel 2W rear-facing speakers
• HDMI input for external video
• Integrated WiFi passthrough / WiFi booster
• Supports 75mm & 100mm VESA mounting
• Optional internal privacy / anti-glare filters available

Applications & Benefits

• Designed for near-patient clinical environments: EMR charting, diagnostics and point-of-care workflows
• Reduces deployment complexity by supplying peripheral power from the monitor
• Glove-tuned touchscreen and chemical-resistant front enable reliable use in sterile and high-cleaning settings
• Medical certifications and long product lifecycle support regulatory and enterprise requirements

Technical Specifications

• Display: 1920x1080 | 16:9 | 250 nits | 178°/178° viewing angle | 3000:1 contrast ratio
• Touch Screen: PCAP multi-touch (10-point) with optional anti-glare
• DC Power Out: Optional module with 2 x variable-voltage DC outputs for external devices
• Viewing Angle: Horizontal 178°, Vertical 170° (typical)
• Number of Colors: 16.7 million
• Brightness: 250 cd/m²
• Response Time: 25 ms
• Power Supply: 120W medical-grade PSU. Input: 100–240V AC, 50–60Hz. 12V/24V support with optional DC converter. Supports output DC18V–19V. 6.3A adapters.
• IP Rating: IP65 sealed front bezel; IPX1 back cover
• Dimensions (L x W x D): 25.50" x 14.80" x 2.10"
• Weight: 17.75 lbs
• Wall Mount: Supports 75mm & 100mm VESA
• Environment: Operating temperature 0°C to 35°C
• Relative Humidity: 10%–90% (non-condensing)
• Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1; FCC Class B; CE; Energy Star; RoHS; WEEE; REACH
• I/O Ports: 1x HDMI (In); 1x USB (touch); 1x 4-pin DIN power jack; 1x debug/service port; 2x WiFi passthrough
• Audio: 2-channel 2W rear-facing speakers
• Warranty: 3 years standard (optional up to 5 years)
