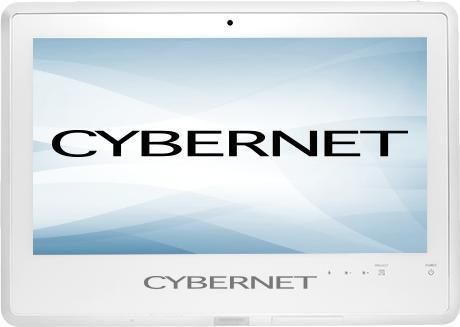

Medical display CyberMed PX20

not specifiedwall-mountedtouch screen

Overview
The CyberMed PX20 is a 19.5" medical touchscreen monitor designed for point-of-care charting and diagnostics. It features an IP65 sealed front bezel and antimicrobial housing for spray-and-wipe disinfection, plus medical-grade electrical safety certifications for near-patient use.

Key Features

• 19.5" 1600x900 (16:9) display
• 10-point PCAP multi-touch, glove-friendly
• Dual rear-facing speakers (2 x 2W)
• HDMI input for external video
• Integrated WiFi boost and WiFi passthrough

Highlights

• IP65 sealed front bezel and IPX1 back cover for front-side waterproofing and easy disinfection
• Antimicrobial molded housing to resist staining, odors and material degradation
• PCAP touch tuned for multiple glove layers and moisture
• Optional embedded privacy and anti-glare filters
• Optional integrated DC power output module for peripherals (barcode scanners, printers)
• IEC/UL 60601-1 and related medical electrical safety certifications for near-patient use

Specifications

• Display: 1600x900 | 16:9 | 250 nits | 170°/170° viewing angle | 1000:1 contrast ratio
• Touch Screen: PCAP multi-touch (10-point) with optional antiglare
• DC Power Out: Optional module with 2 x variable-voltage DC outputs
• Viewing Angle: Horizontal 178°, Vertical 170° (typical)
• Number of Colors: 16.7 million
• Brightness: 250 cd/m²
• Response Time: 25 ms
• Power Supply: 120W medical-grade PSU; Input: 100–240V AC, 50–60Hz; 12V/24V support with optional DC converter; supports DC18V–19V output; 6.3A adapters
• IP Rating: IP65 sealed front bezel; IPX1 back cover
• Dimensions (W x H x D): 20.35" x 14.37" x 1.95"
• Weight: 16.75 lbs
• Wall Mount: Supports 75mm & 100mm VESA
• Environment: Operating temperature 0°C to 35°C
• Relative Humidity: 10%–90% (non-condensing)
• Certifications: UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1, FCC Class B, CE, Energy Star, RoHS, WEEE, REACH
• I/O Ports: 1x HDMI In; 1x USB (touch); 1x 4-pin DIN power jack; 1x debug/service port; 2x WiFi passthrough
• Audio: 2-channel 2W rear-facing speakers
• Warranty: 3 years standard; optional plans up to 5 years (some terms apply to US customers)
