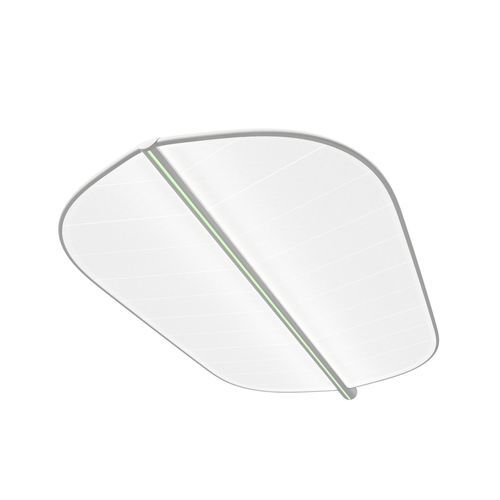

Clinical lighting L168

for treatment roomsceiling-mountedLED

Overview
Clinical overhead LED luminaire designed for examination and treatment spaces up to approximately 15 m². Integrates SunLike LED technology to reduce blue light and closely mimic natural sunlight, offering high colour rendering (CRI 98) to support diagnostic tasks and patient comfort. An integrated LED colour strip enables selectable ambient colours to adapt the room atmosphere.

Monitor mount
Optional monitor mount accommodates a high-quality display for reviewing digital X-rays, camera feeds, patient information and educational material, improving workflow and patient interaction in the examination or treatment room.

Design and comfort
Ultra-slim, leaf-inspired profile with an acrylic Light Guide Panel (LGP) laser-engraved with a leaf pattern for efficient light guidance and uniform distribution. Hundreds of small LEDs combined with integrated microprisms deliver shadow-free and glare-free illumination to support precise clinical tasks. Indirect upward-facing light softly reflects on ceilings and vertical surfaces to create a balanced room illumination.

Technology

• SunLike: LED technology engineered to reproduce the sun’s natural spectrum, providing high CRI and reduced blue light for improved well-being and visual comfort.
• Dynamic daylight simulation: smooth automatic transitions between warmer and cooler colour temperatures to mimic natural daylight cycles.
• Shadow-free lighting: distributed LED layout and microprism diffusion minimise shadows on the work surface to reduce the risk of visual errors.
• Glare-free comfort: diffusing panel and microprism structure suppress direct glare and improve ergonomics for clinical staff.
• Minimal heat emission: aluminium cooling construction and efficient LEDs keep thermal output low for durable operation.

Sustainability

• Up to 70% energy savings compared with conventional solutions.
• Expected service life exceeding 20 years.
• Dimming capability to reduce energy use when full brightness is unnecessary.
• Design considerations for reuse and recycling to limit environmental impact.

Product sheet / Technical table
Product: L168
Light source: LED, 115–168 W
Illuminance: 3000 lux / 1.2 m
Colour temperature: 3,000–5,700 K, CRI 98
Dimensions: 1190 x 638 x 51 mm
Weight: 12 kg
Rating: IP20
Options: Indirect lighting; Dynamic lighting; Monitor mount

Technical specifications

• Model: L168
• Light source: LED, 115–168 W
• Illuminance: 3000 lux at 1.2 m
• Colour temperature range: 3,000–5,700 K
• CRI: 98 (daylight-quality colour rendering)
• Dimensions (W x H x D): 1190 x 638 x 51 mm
• Weight: 12 kg
• Ingress protection rating: IP20
• Features: Ultra-slim leaf-inspired design; acrylic Light Guide Panel with laser-engraved leaf pattern; integrated LED colour strip for dynamic colour selection; microprism diffusion for glare-free and shadow-free lighting; indirect upward-facing light for room harmony
• Intended coverage: Designed to effectively illuminate areas up to approximately 15 m²
• Energy & longevity: Up to 70% energy savings; >20 years service life; dimming available
• Available options: Indirect lighting, Dynamic lighting, Monitor mount
