Clinical lighting BR120

medicalfor treatment roomsceiling-mounted

Overview

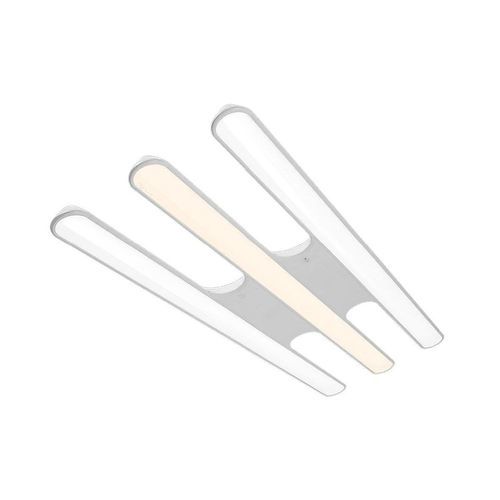

The D stands for Dynamic. Brite Triton D shares the same design as Brite Triton with one important difference: the centre section provides a warm white light (3000 K) while surrounding sections deliver cooler, daylight-like light. The luminaire produces powerful, glare-free and shadow-free illumination across large work areas, supporting accurate colour perception and visual clarity. Remote control allows dimming and two programmable quick-access functions; the centre warm section can be switched off for colour matching tasks.

Key features

• 3450 lux at 1.2 m: powerful illumination for larger examination or treatment areas
• Dynamic daylight mode included: simulates natural daylight variations
• Colour temperature range 3000–5700 K, centre section supplied at 3000 K
• CRI 94: precise colour rendering for colour-critical procedures
• Glare-free and shadow-free light distribution via microprisms and diffusing panels
• Remote control with dimming and two programmable quick-access buttons (e.g. X-ray viewing, composite work); centre warm section can be turned off
• Estimated lifespan: approx. 50,000 operating hours

Design and performance
Brite Triton D is engineered for clinical and professional environments that require a wide, uniform illuminated area combined with high colour fidelity. Parallel light sources focus toward the centre where warm and cool sections blend to form soft, even illumination. Integrated microprisms and diffusers ensure even light distribution to minimise shadows and eliminate glare. Fully enclosed LED modules and an aluminium housing protect internal components and reduce electromagnetic interference. LED technology and advanced reflectors provide efficient light output while the aluminium construction supports passive cooling and low heat emission.

Technical specifications

• Model: BR120
• Light source: LED 159 W
• Illuminance: 3450 lux at 1.2 m
• Colour temperature: centre 3000 K (warm), surrounding up to 5700 K; dynamic simulation included
• CRI: 94
• Dimensions: 1200 x 390 x 45 mm
• Weight: 7 kg
• Ingress protection: IP20 / IP21
• Controls: remote control with dimmer and two programmable quick-access buttons
• Estimated lifespan: approx. 50,000 operating hours
