Dental clinic lighting C209

laboratoryaesthetic medicinefor veterinary clinics

Overview

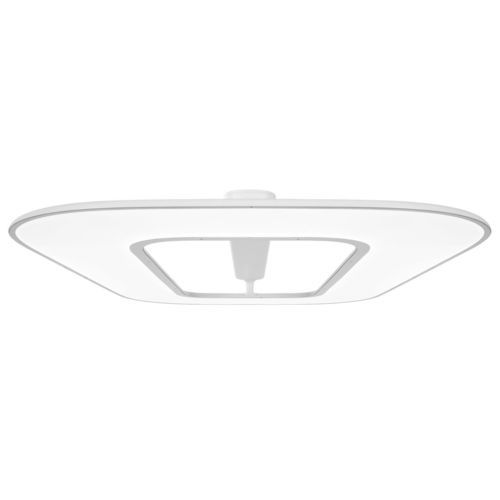

The Cloud C209 is a ceiling-mounted LED light panel designed for clinical and laboratory environments. It provides uniform, high-quality illumination with accurate colour rendering to support precise visual tasks and to improve patient comfort. Optional lighting effects include an integrated colour panel with moving cloud motifs and a dynamic daylight simulation with automatic warm–cool transitions.

Key features

• High task illuminance: 4500 lux (measured at 1.2 m)
• Natural colour rendering: CRI 94
• Ultra-slim profile: 15 mm
• Dynamic lighting: daylight simulation and automatic transitions
• Shadow-free illumination using microprisms and advanced light-distribution technology
• Dimming function with included remote control

Technology
Cloud combines a large light-guide panel, structured optical diffusing elements and microprism optics to deliver uniform, glare-controlled light across the work surface. Indirect upward-directed light softens contrasts and reduces eye strain while enabling smooth transitions between zones. High-efficiency LEDs and reflectors maximise light output and colour mixing.

Technical highlights

• 1,023 high-efficiency Cree LEDs
• Up to 165 lm/W at CRI >94
• Reflectors returning >98% of light
• Large light guide and structured optical panel to minimise glare
• Structured optical panel for even distribution of light and colour

Applications

• Healthcare facilities
• Dentistry
• Beauty care and cosmetology
• Animal care and veterinary practices
• Laboratories and medical/dental technology

Options & Accessories

• Indirect lighting
• Dynamic lighting (automatic)
• Colour panel (optional) — drifting-cloud or full-spectrum colour effects; not combinable with monitor mount
• Monitor / TV mount (optional) — standardized mount for patient distraction; not combinable with colour panel

Technical specifications (table)
Product: C209
Light source: LED 209 – 290 W
Illuminance: 4500 lux / 1.2 m
Colour temperature: 3000 – 5700 K, CRI 94
Dimensions: 1282 x 850 x 15 mm
Weight: 20 kg
Rating: IP20
Included: Dimmer with remote control
Options: Indirect lighting; Dynamic lighting (automatic); Colour panel*; Monitor mount*
*The colour panel and monitor mount cannot be combined.

Detailed technical specifications

• Model: C209
• Light output: 4500 lux at 1.2 m
• Colour rendering: CRI 94
• Colour temperature range: 3000 – 5700 K
• LED count: 1,023 LEDs (high-efficiency Cree LEDs)
• Efficiency: up to 165 lm/W at CRI >94
• Light distribution: microprismatic technology and structured optical panel for even light and colour mixing
• Reflectors: return >98% of light
• Physical dimensions: 1282 × 850 × 15 mm (profile height 15 mm)
• Weight: 20 kg
• Ingress rating: IP20
• Included control: Dimmer with remote control
• Available options: Indirect lighting; Dynamic daylight simulation (automatic); Colour panel (optional, exclusive with monitor mount); Monitor mount (optional, exclusive with colour panel)
• Design: machined from a single piece of aluminium for a hygienic, easy-to-clean surface
