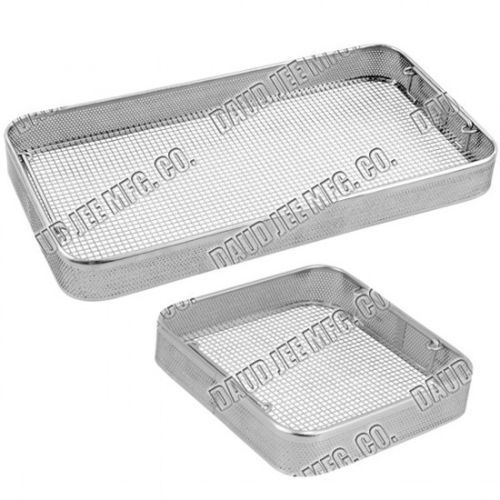

Instrument sterilization basket DJ-45 series
perforatedstainless steelwire

Instrument sterilization basket - DJ-45 series - DAUD JEE MFG. CO - perforated / stainless steel / wire
Instrument sterilization basket - DJ-45 series - DAUD JEE MFG. CO - perforated / stainless steel / wire
Add to favorites
Compare this product
Go to the DAUD JEE MFG. CO website for more information

Characteristics

Applications
for instruments
Other characteristics
autoclavable, wire, perforated, stainless steel

Description

Product overview
DIN instrument baskets designed for safe cleaning, rinsing and sterilization of surgical and medical instruments. Side-perforated walls protect sharp instrument edges while allowing optimal circulation of wash fluids and sterilizing agents.

Features
  • Manufactured in stainless steel AISI-304.
  • Electro-polished finish for corrosion resistance and easy cleaning.
  • Burr-free construction and smooth rounded edges to protect instrument tips and packaging.
  • Side wall perforation hole size: 2.0 mm to protect delicate instrument edges and tips.
  • Top and bottom frame diameter: 5.0 mm for dimensional stability.
  • Flat base available in welded mesh with square opening 6.0 mm and wire diameter 1.2 mm.
  • Compatible with automatic washing and sterilization processes.
  • Separated lids available with double frame; available with drop handles.


Available options
  • DJ-4545 - 120x250x50
  • DJ-4546 - 120X250X60
  • DJ-4547 - 120X250X70
  • DJ-4548 - 120X250X100
  • DJ-4549 - 240x250x50
  • DJ-4550 - 240x250x60
  • DJ-4551 - 240x250x70
  • DJ-4552 - 240x250x100
  • DJ-4553 - 405X250X50
  • DJ-4554 - 405X250X60
  • DJ-4555 - 405X250X70
  • DJ-4556 - 405X250X100
  • DJ-4557 - 480x250x50
  • DJ-4558 - 480x250x60
  • DJ-4559 - 480x250x70
  • DJ-4560 - 480x250x100
  • DJ-4561 - 540X250X50
  • DJ-4562 - 540X250X60
  • DJ-4563 - 540X250X70
  • DJ-4564 - 540X250X100
  • DJ-4565 - 480X360X50
  • DJ-4566 - 480X360X60
  • DJ-4567 - 480X360X70
  • DJ-4568 - 480X360X100
  • DJ-4569 - 480x480x50
  • DJ-4570 - 480x480x60
  • DJ-4571 - 480X480X70
  • DJ-4572 - 480X480X100


Technical specifications
  • Product range: DJ-4545–DJ-4572
  • Designation: DIN instrument baskets, side-perforated, flat base
  • Material: Stainless steel AISI-304
  • Finish: Electro-polished
  • Perforation hole size (side wall): 2.0 mm
  • Top & bottom frame diameter: 5.0 mm
  • Flat base welded mesh opening (square): 6.0 mm
  • Flat base mesh wire diameter: 1.2 mm
  • Lids: Separated lids available with double frame
  • Handles: Available with drop (folding) handles
