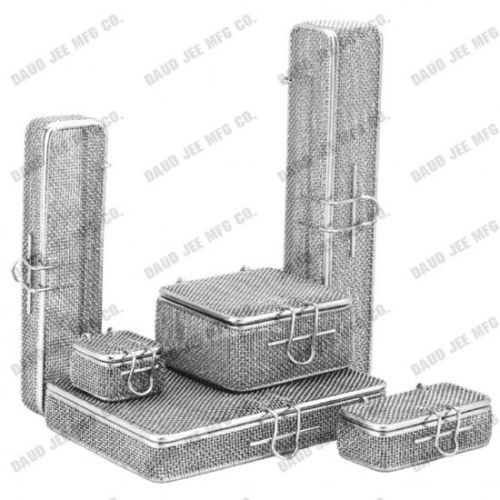

Instrument sterilization basket DJ-4343MM

perforatedstainless steelwire

Product name
Micro fine mesh sterilization baskets with lids (DJ-4343MM–DJ-4355MM)

Features

• Manufactured in stainless steel grade AISI-304 for medical sterilization environments.
• Top and lid frame diameter: 3.5 mm.
• Additional frame dimension: 4.0 mm (depending on basket size).
• Micro fine mesh with square opening: 1.0 mm for secure instrument containment.
• Wire diameter: 5.0 mm with wire locking clip closure.
• Electropolished surface finish for corrosion resistance and ease of cleaning.

Available options / sizes (variants)

• DJ-4343MM - 40x40x20 mm
• DJ-4344MM - 70x70x30 mm
• DJ-4345MM - 80x40x20 mm
• DJ-4346MM - 80x40x30 mm
• DJ-4347MM - 80x80x34 mm
• DJ-4348MM - 80x80x40 mm
• DJ-4349MM - 90x90x50 mm
• DJ-4350MM - 150x110x20 mm
• DJ-4351MM - 160x40x20 mm
• DJ-4352MM - 105x70x25 mm
• DJ-4353MM - 141x50x40 mm
• DJ-4354MM - 150x50x35 mm
• DJ-4355MM - 180x130x20 mm

Notes
Micro fine mesh sterilization baskets supplied with lids, designed for instrument containment and sterilization processes.

Technical specifications

• Material: Stainless steel grade AISI-304.
• Top and lid frame diameter: 3.5 mm.
• Additional frame dimension: 4.0 mm (according to basket size).
• Mesh opening (square): 1.0 mm.
• Wire diameter: 5.0 mm.
• Closure: Wire locking clip.
• Surface finish: Electropolish.
• Available sizes/variants: see list of DJ-4343MM → DJ-4355MM variants with corresponding dimensions.
