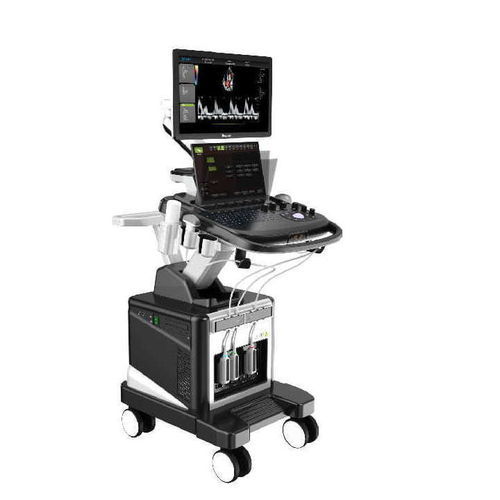

On-platform ultrasound system DW-T9

for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor cardiovascular ultrasound imaging

Product Overview
DW-T9 Diagnostic Ultrasound System is a cart-based color Doppler diagnostic ultrasound solution designed for comprehensive clinical use. It pairs an intuitive workflow with advanced imaging capabilities suitable for general imaging, OB/GYN, cardiology, MSK and vascular applications.

Design & Ergonomics
The system features a compact, modern chassis with dual adjustable screens and a one-touch height adjustment for optimized viewing and operator comfort. Controls are arranged for efficient workflow and point-of-care use.

Platform & Performance
Powered by the ST-U ultra-fast imaging platform and COM-E software solution, DW-T9 uses a CPU+GPU high-speed algorithm to produce detailed real-time images. The system supports multi-channel interoperability, fully activated probe interfaces and includes substantial internal data storage.

Function
With a 23.8" HD monitor and an intuitive user interface, the DW-T9 delivers precise real-time imaging and streamlined exam procedures to enhance diagnostic confidence and clinical throughput.

Key Technologies & Imaging Modes

• PW Optimization Technology: Improves blood flow analysis by refining signal clarity and measurement accuracy, reducing noise artifacts and enhancing Doppler resolution.
• Speckle Reduction Imaging (SRI): Reduces granular noise to produce smoother, sharper images for abdominal, vascular and OB/GYN exams.
• Contrast Imaging: Supports contrast-enhanced ultrasound for improved lesion characterization.
• Trapezoidal Imaging: Expands field of view for improved visualization with applicable probes.
• Color-M Mode (Color-M blood flow mode): Advanced color flow visualization.
• 4D Imaging: Real-time 4D fetal and obstetric imaging capabilities.
• Panoramic Imaging: Extended field-of-view panoramic scans.
• Tissue Doppler Imaging (TDI): Cardiac tissue velocity assessment.
• Anatomic M Mode & Anatomical 3M Imaging: Advanced cardiac imaging and measurement modes.
• Elastography: Tissue stiffness assessment.

Rich Specialized Measuring Software
The system includes dedicated measurement packages for abdomen, musculoskeletal (MSK), early/late OB, cardiac and other specialties to reduce manual measurement variability and speed reporting.

Probes & Compatibility

• 4D convex probe
• 4D transvaginal probe
• Transvaginal probe
• Transrectal probe
• Phased array probe
• Pediatric phased array probe
• Convex probe
• Micro-convex probe
• Linear probe
• High-frequency linear probe
• Hockey-stick probe
• Bi-plane probe

Applications
Designed for whole-body clinical applications including general imaging, OB/GYN, cardiology, MSK, vascular studies and point-of-care settings.

Technical Specifications

• Model: DW-T9
• System type: Cart-based color Doppler diagnostic ultrasound
• Monitor: 23.8" HD monitor
• Display: Dual adjustable screens with one-touch height adjustment
• Imaging platform: ST-U ultra-fast imaging platform
• Processing: CPU+GPU high-speed algorithm
• Software solution: COM-E solution
• Key imaging modes: B-mode, Color Doppler, PW Doppler with PW Optimization, M-mode, Color-M mode, 4D, Contrast Imaging, Trapezoidal Imaging, Panoramic Imaging, Elastography, Tissue Doppler Imaging (TDI), Anatomic M Mode/3M
• Speckle reduction: Speckle Reduction Imaging (SRI)
• Measurement packages: Specialized measuring software for abdomen, OB (early/late), MSK, cardiac and more
• Probe support: Multi-channel interoperable; supports convex, linear, phased, micro-convex, transvaginal, transrectal, 4D probes, pediatric phased array, bi-plane, hockey-stick, high-frequency linear
• Data storage: Built-in large data storage capacity
• Ergonomics: Human-centered design for efficient workflow and easy operation
