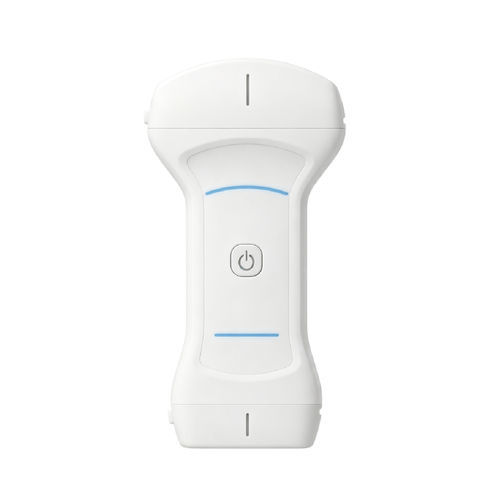

Hand-held ultrasound system DW-X1i

for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor cardiovascular ultrasound imaging

Product Overview
The DW-X1i is a wireless 3-in-1 ultrasound probe integrating convex, linear and cardiac imaging in a single handheld device. Designed for point-of-care and routine clinical use, it combines AI-assisted measurement tools, wireless charging support and cross-platform compatibility for Android, iOS and Windows.

Key Features

• 3-in-1 imaging: convex, linear and cardiac modes in one wireless probe.
• AI-assisted measurements and recognition to support clinical assessment and streamline workflow.
• Wireless operation with up to 2.5 hours continuous work time and support for wireless charging.
• Customizable presets and gesture-based adjustments for intuitive handling.
• Remote firmware upgrade capability and multiple language packs included.

AI-assisted Measurement & Recognition
Embedded AI algorithms provide automated recognition and measurements to reduce manual steps and support diagnostic decision-making.

• Static recognition examples: Auto IMT (intima-media thickness), automatic ejection fraction measurement, automatic bladder volume recognition, automatic muscle and fat recognition.
• Real-time analysis assists detection tasks such as thyroid lesion, breast lesion and carotid plaque identification, plus skin and abdominal fat analysis.

Imaging Modes (summary)

• Convex Imaging: 32 channels / 128 elements, 2.0–5.0 MHz — abdominal, obstetric/gynecologic and urinary examinations.
• Linear Imaging: 32 channels / 128 elements, 4.2–12.5 MHz — vascular, musculoskeletal, thyroid, breast and superficial tissues.
• Cardiac Imaging: 32 channels / 64 elements, 2.6–4.8 MHz — cardiac presets for structural and functional heart assessment.

Smart Workflow
Features aimed at efficient scanning and image management to suit clinical routines.

• Typical work time up to 2.5 hours; supports wireless charging for rapid turnaround.
• Gesture-based adjustments for hands-free or single-operator use.
• Multiple customizable presets to adapt to different clinical applications.
• Support for remote firmware upgrades to maintain and expand feature set.

Imaging Processing Functions
Advanced processing options improve diagnostic capability and image clarity.

• Elastography
• Needle enhancement
• Tissue Doppler Imaging (TDI)
• Power Doppler
• Auto Envelope
• Pulsed-wave Doppler

Applications
Suitable for abdominal, vascular, obstetric/gynecologic, cardiac, urinary, musculoskeletal, thyroid, breast and superficial tissue imaging. Its combined modes enable broad point-of-care and routine clinical examinations.

Technical Specifications

• Model: DW-X1i
• Product type: 3-in-1 Wireless Ultrasound Probe (convex + linear + cardiac)
• Compatibility: Android, iOS, Windows
• Battery life: up to 2.5 hours (typical work time)
• Charging: supports wireless charger
• Language packs: multiple language packs included (13 standard)
• Convex mode: 32 channels / 128 elements, 2.0–5.0 MHz (abdominal/OB-GYN/urinary)
• Linear mode: 32 channels / 128 elements, 4.2–12.5 MHz (vascular/MSK/thyroid/breast/superficial)
• Cardiac mode: 32 channels / 64 elements, 2.6–4.8 MHz (cardiac presets)
• AI capabilities: Auto IMT, automatic ejection fraction, automatic bladder volume, automatic muscle & fat recognition, lesion detection assist (thyroid, breast, carotid plaque, etc.)
• Imaging functions: elastography, needle enhancement, tissue Doppler Imaging, power Doppler, Auto Envelope, pulsed-wave Doppler
• Workflow features: gesture adjustment, customizable presets, remote firmware upgrade support
