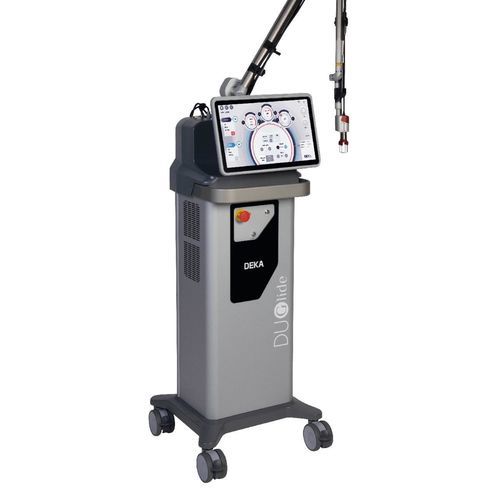

Skin rejuvenation laser DuoGlide

vulvo-vaginal rejuvenationsurgicalophthalmic

Overview
DUOGlide combines CO2 10600 nm and 1540 nm wavelengths in a single system to provide combined ablation and deeper thermal stimulation. The device delivers controlled fractional action to stimulate collagen while limiting downtime; suitable for delicate areas such as neck, décolleté and periorbital regions.

Key benefits

• Combined wavelengths amplify tissue-stimulating effects by targeting both surface ablation and deeper dermal heating.
• Precise control of pulse shape and sequence via PSD (Pulse Shape Design) technology and SMARTSTACK for predictable clinical outcomes and reduced side-effect risk.
• Modular scanning accessories expand indications from resurfacing to scar remodeling and mucosal treatments.

Scanning systems / Accessories

• μ-Scan DOT — ergonomic fractional or traditional resurfacing scanner with adjustable spot, spacing and pattern.
• μ-Scar 3 — scanner for deep scar remodeling; enables greater depth (up to 6 mm) with reduced energy to minimize post-treatment hyper-/hypopigmentation risk.
• Derma Scan — fast, tridimensional ablation scanner available with 4" and 7" focus handpieces.
• μ-Scan V2LR — scanner designed for urogenital (vaginal) applications by delivering fractionated CO2 energy to the vaginal walls.

D-PULSE (impulse specific for vaginal mucosa)
D-PULSE is a two-phase pulse modality developed for mucosal applications (e.g., MonaLisa Touch®). It combines a high peak, short first phase for superficial epithelial ablation with a lower peak, longer second phase to deliver deeper thermal stimulation without excessive thermal side effects.

PSD (Pulse Shape Design) technology
The CO2 RF source with PSD enables selectable pulse shapes, durations and peak powers (S‑Pulse, D‑Pulse, H‑Pulse, U‑Pulse, CW) to precisely modulate ablation depth and thermal effect and tailor protocols to each indication.

SMARTSTACK function
SMARTSTACK allows emission of 1 to 5 consecutive pulses in the same DOT to control cumulative thermal effect and vaporization depth, reducing bleeding and other side effects while accelerating recovery.

Applications

• Skin surgery and resurfacing (fractional or traditional)
• Rejuvenation and photo-rejuvenation
• Scar remodeling (superficial and deep scars)
• Urogenital (vaginal) mucosal treatments
• Eyelid procedures / laser blepharoplasty with Slimcut handpiece

Source
CO2 10600 nm and 1540 nm

Technical characteristics / specifications

• Wavelengths: CO2 10600 nm + 1540 nm (combined ablative + thermal action).
• Pulse Shape Design (PSD) modalities: S‑Pulse, D‑Pulse, H‑Pulse, U‑Pulse, CW.
• SMARTSTACK: 1 to 5 pulses per DOT for controlled thermal accumulation and vaporization.
• Scanning/accessory options: μ-Scan DOT, μ-Scar 3 (deep action up to 6 mm), Derma Scan (4" and 7" focus handpieces), μ-Scan V2LR.
• Primary clinical effects: combined surface ablation and dermal heating to stimulate collagen, improve tissue remodeling and reduce downtime.
• Indicated anatomical areas: delicate regions including neck, décolleté and periorbital area; also mucosal and surgical dermatology applications.
