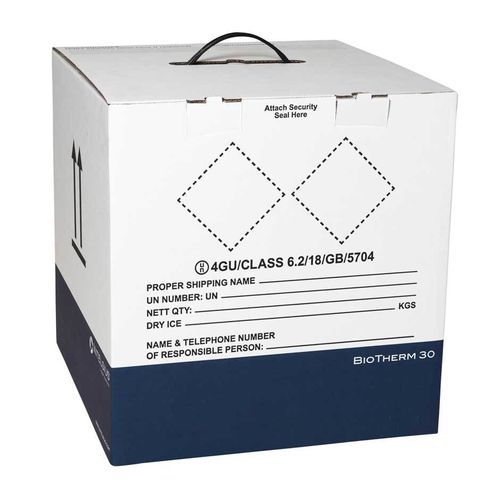

Pharmaceutical product packaging box BioTherm 30 DI

biological samplestransportpaper

Full description
The BioTherm Dry Ice range is designed for the safe transportation of deep-frozen biological and clinical samples in compliance with IATA, ADR and DOT (49 CFR) transport regulations. The systems support Category A and Category B shipments, available as complete systems or as overpacks for medical and laboratory logistics.

BioTherm 30 Dry Ice shipper
The BioTherm 30 provides frozen temperature control for a minimum of 120 hours when packed with 19.3 kg of dry ice. Internal dimensions: 320 x 320 x 320 mm.

This product can be used for:

• Infectious samples
• Diagnostic samples
• Clinical trial materials
• Screening programmes
• Eradication schemes

Key features:

• Category A and Category B systems supplied with compliant transport bags and absorbent
• Dry ice shipper range suitable as overpacks for complete Category A and Category B solutions

Variants / Example system descriptions (as provided for product variants)
Category A Compliant System (example variant): External Dims – 465 mm x 458 mm x 478 mm; Internal Pouch Dimensions – 240 mm x 220 mm; Number of Pouches – 2; Number of Tubes – 36; Duration – 96 hours; Mass – 2.5 kg; Dry Ice Mass – 13.6 kg.

Category A Compliant System (prepared variant SKU PREPBT093): External Dims – 465 mm x 458 mm x 478 mm; Internal Pouch Dimensions – 240 mm x 220 mm; Number of Pouches – 2; Number of Tubes – 36; Duration – 96 hours; Mass – 2.5 kg; Dry Ice Mass – 13.6 kg.

Category B Compliant System (example variant): External Dims – 465 mm x 458 mm x 478 mm; Internal Bag Dimensions – 270 mm x 190 mm; Number of Pouches – 2; Number of Tubes – 36; Duration – 96 hours; Mass – 2.5 kg; Dry Ice Mass – 13.6 kg.

Category B Compliant System (prepared variant SKU PREPBT104): External Dims – 465 mm x 458 mm x 478 mm; Internal Bag Dimensions – 270 mm x 190 mm; Number of Pouches – 2; Number of Tubes – 36; Duration – 96 hours; Mass – 2.5 kg; Dry Ice Mass – 13.6 kg.

Dry Ice Shipper variant (example): External Dims – 465 mm x 458 mm x 478 mm; Internal Volume – 32.7 L; Duration – 96 hours; Mass – 2.5 kg; Dry Ice Mass – 13.6 kg.

Technical characteristics / specifications

• Product family / model: BioTherm 30
• External dimensions (variant data): 465 mm x 458 mm x 478 mm
• Internal dimensions (product statement): 320 mm x 320 mm x 320 mm
• Internal pouch dimensions (some variants): 240 mm x 220 mm
• Internal bag dimensions (other variants): 270 mm x 190 mm
• Internal volume (dry ice shipper variant): 32.7 L
• Number of pouches (where specified): 2
• Number of tubes (where specified): 36
• Nominal payload mass (system mass): 2.5 kg
• Dry ice mass (variant typical): 13.6 kg (variant figure)
• Dry ice packed for extended duration: 19.3 kg dry ice → minimum 120 hours frozen control (product statement)
• Typical guaranteed duration (variant data): 96 hours
• Standards / compliance: Designed to meet IATA, ADR and DOT (49 CFR) transport regulations for deep-frozen Category A and B shipments
