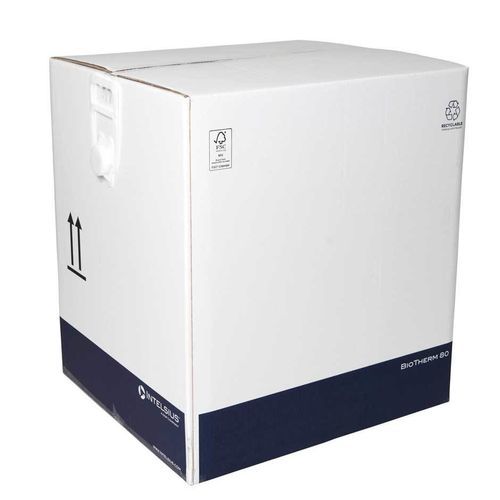

Pharmaceutical product packaging box BioTherm 80 DI

biological samplestransportpaper

Full description
The BioTherm Dry Ice range is designed for the safe transportation of deep-frozen samples and biological materials in accordance with IATA, ADR and DOT (49 CFR) transport regulations. Systems are available as complete Category A and Category B solutions or as overpacks to support compliant shipments.

Performance
The BioTherm 80 Dry Ice shipper provides frozen temperature control for a minimum of 120 hours when a temperature-critical payload is packed with 43.5 kg of dry ice. Internal dimensions: 444 x 388 x 485 mm. Internal volume: 83.5 L.

Applications

• Infectious samples
• Diagnostic samples
• Clinical trials
• Screening programmes
• Eradication schemes

Key features

• Available for Category A and Category B shipments with compliant transport bags and absorbent materials
• Dry ice shipper range suitable for use as overpacks within complete Category A and Category B solutions

Technical specifications

• External dimensions – 570 mm x 520 mm x 635 mm
• Internal dimensions – 444 mm x 388 mm x 485 mm
• Internal volume – 83.5 L
• Duration (holding time) – 120 Hours
• Mass (product) – 3.2 KG
• Dry ice capacity (variant) – 33.0 KG
• Dry ice required for 120 hours – 43.5 KG
