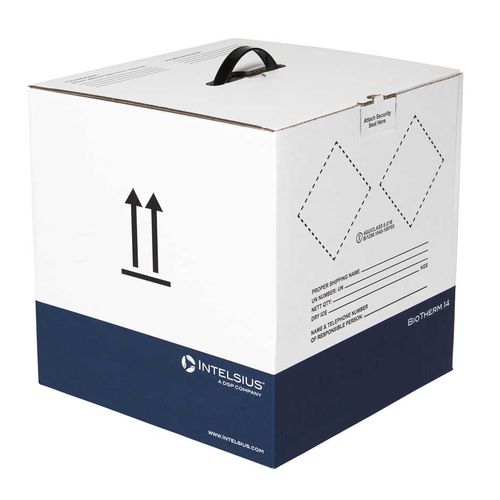

Pharmaceutical product packaging box BioTherm 14 DI

biological samplestransportpaper

Full description
The BioTherm Dry Ice shipper range is designed for the safe transport of deep-frozen biological samples in compliance with IATA, ADR and DOT (49 CFR) regulations. Systems are available as complete Category A and Category B solutions or as dry-ice overpacks for prepared payloads.

Product details
The BioTherm 14 Dry Ice shipper provides frozen temperature control for a minimum of 96 hours when the payload is packed with 8.5 kg of dry ice. Internal dimensions: 228 x 228 x 228 mm. Typical external dimensions: 385 x 380 x 395 mm.

Applications

• Transport of infectious samples (Category A and B)
• Diagnostic and clinical trial specimens
• Screening and eradication programmes
• Cold-chain distribution of temperature-critical reagents

Key features

• Designed to meet IATA, ADR and DOT (49 CFR) transport regulations
• Compatible with Category A and Category B compliant packing systems, including compliant transport bags and absorbents
• Can be used as an overpack for complete Category A/B solutions or as a dry-ice-only shipper
• Typical hold time: 96 hours with recommended dry ice load

Variants / Options (summary)

• Category A Compliant System — example SKU BT091 — External: 385 x 380 x 395 mm; Internal pouch: 240 x 220 mm; Pouches: 1; Tubes: 18; Duration: 96 h; Packaged mass: 1.7 kg; Example dry ice mass: 7.6 kg
• Category B Compliant System — example SKU BT103 — External: 385 x 380 x 395 mm; Internal bag: 270 x 190 mm; Pouches: 1; Tubes: 24; Duration: 96 h; Packaged mass: 1.7 kg; Example dry ice mass: 7.6 kg
• Dry Ice Shipper — example SKU BT077 — External: 385 x 380 x 395 mm; Internal volume: 11.8 L; Duration: 96 h; Packaged mass: 1.7 kg; Example dry ice mass: 7.6 kg
• Some variations are available with or without dry ice addition; prices and availability depend on selected configuration

Technical specifications

• Model: BioTherm 14
• Brand: Intelsius
• External dimensions (typical): 385 mm x 380 mm x 395 mm
• Internal dimensions (BioTherm 14): 228 mm x 228 mm x 228 mm
• Internal pouch dimensions (Category A variation): 240 mm x 220 mm
• Internal bag dimensions (Category B variation): 270 mm x 190 mm
• Internal volume (Dry Ice Shipper variation): 11.8 L
• Number of pouches: 1
• Number of tubes: 18 or 24 depending on variation
• Nominal duration: 96 hours (with specified dry ice load)
• Typical packaged mass: 1.7 kg
• Dry ice mass (example): 7.6 kg (check variant for exact unit)
• Dry ice load for 96 h (stated): 8.5 kg
• Compliance: Designed to meet IATA, ADR and DOT (49 CFR) transport regulations
