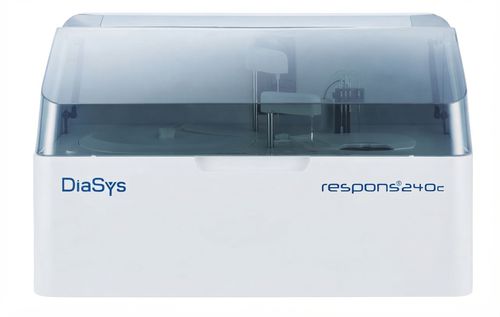

Fully automatic biochemistry analyzer respons®240c

compactbenchtopwith ISE

Overview
Experience efficient and reliable laboratory testing with respons®240c. This fully automated bench-top clinical chemistry analyzer is intended for small laboratories and delivers a constant throughput of 240 tests per hour (400 tests/hour including optional ISE). Its compact footprint and intuitive user interface enable low operating costs, simplified maintenance and consistent analytical performance.

Reaction system
The grating photometer is engineered for maintenance-free operation and provides 12 wavelengths for accurate photometric measurements. Photometric linearity up to 3.5 OD reduces repeat measurements. Cuvette thermostatization is performed by air heating, eliminating the need for a water bath. Twin-test capability supports the DiaSys HbA1c net FS assay.

Advanced HbA1c testing
Onboard automated hemolysis of whole blood samples removes manual pre-processing. HbA1c smart sampling aspirates erythrocytes from the tube bottom to handle samples with higher sedimentation. After processing, a deep wash of the sample probe minimizes carryover and preserves result integrity.

Reagent/Sample rotor
Onboard capacity for up to 36 DiaSys respons® bottles in a refrigerated reagent rotor (2-12°C). Dedicated respons® bottles support one-grip loading, including two-component reagents. Rotor also provides 36 flexible positions for samples, calibrators and controls.

Reagent/Sample probe
Liquid level detection prevents dry aspiration. Sample clot detection and collision protection ensure safe, accurate probe handling. Real-time inventory monitoring provides an overview of remaining tests to support workflow planning.

Technical specifications (table)
Throughput: 240 tests/hour (400 tests/hour incl. optional ISE)
Sample types: Serum, plasma, urine, whole blood
Sample volume: 2-35 μL, 0.1 μL steps
Reagent/Sample probe: Liquid level detection, clot detection and collision protection
Reagent pipetting: 10-200 μL, 0.5 μL steps
STAT-analytics: Yes
Ion measurement: ISE upgrade kit available
Barcode identification: Sample, reagent
Sample tray: 36 samples
Reagent on board capacity: 34 respons® containers cooled to 2-12°C
Reaction unit: 80 cuvettes, 8-step auto-washing
Photometry: Grating system, 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740 and 800 nm)
Photometric linearity and resolution: 0-3.5 OD, 0.0001 OD
Water consumption: < 6.5 L/h
Dimensions: 86 cm (W) × 66 cm (D) × 55 cm (H)
Weight: approx. 115 kg

Characteristics / technical specifications

• Throughput: 240 tests/hour (400 tests/hour with optional ISE)
• Sample types: Serum, plasma, urine, whole blood
• Sample volume range: 2-35 μL (0.1 μL steps)
• Reagent pipetting range: 10-200 μL (0.5 μL steps)
• Reagent on-board capacity: 34 respons® containers refrigerated (2-12°C)
• Sample tray capacity: 36 positions
• Reaction unit: 80 cuvettes with 8-step auto-washing
• Photometer: Grating system with 12 wavelengths (340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740, 800 nm)
• Photometric linearity: 0-3.5 OD; resolution 0.0001 OD
• STAT analytics: supported
• Ion measurement: ISE upgrade kit available
• Probe features: Liquid level detection, clot detection, collision protection, deep washing to minimize carryover
• Water consumption: < 6.5 L/h
• Dimensions (W×D×H): 86 × 66 × 55 cm
• Weight: approx. 115 kg
