Knee splint OA FULLFORCE

extensionflexionXS

Product Overview

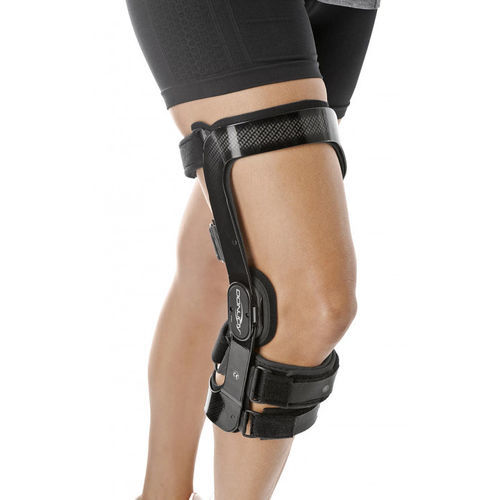

OA FULLFORCE is DonJoy's lightweight knee offloading brace designed to shift painful joint loads away from the affected compartment while reducing ligament strain. The device employs the 4-Points-of-Leverage™ system and an adjustable hinge to stabilize the knee, minimize ACL strain and allow active patients to continue mobility with reduced pain. Available in medial and lateral configurations, right and left.

Indications

• Unicompartmental knee osteoarthritis (mild to moderate)
• Ligamentous instability with meniscal involvement
• Patients who wish to maintain an active lifestyle while managing degenerative joint load

Features & Benefits

• Lightweight aluminum frame that conforms to thigh and calf for a snug anatomical fit
• 4-Points-of-Leverage™ clinically shown to reduce ACL strain and stabilize the knee
• Adjustable varus/valgus correction: 4° built into the frame plus hinge fine-tuning for individualized load transfer
• Range-of-motion controls: extension stops at 0°, 10°, 20°, 30°, 40°; flexion stops at 45°, 60°, 75°, 90°
• Condyle pad with micro-spheres for enhanced patient comfort
• Profiled frame and integrated swivel loops for easier donning and low-profile fit
• 90 Day Test Drive: if not satisfied within 90 days of fitting, return for full credit or refund

Ordering Information
Part Number | Model
11-1578-x | Medial RT
11-1579-x | Medial LT
11-1580-x | Lateral RT
11-1581-x | Lateral LT

Accessories
Part Number | Item Name | Size
11-0075-x-00000 | Lycra Suspension Sleeve | S - XXL
11-0122-x | Neoprene Suspension Sleeve | XS - XXL

Strap Kit and Pads
Short R/L | 11-1052-X-06000
Short Right | 11-1469-X
Short Left | 11-1470-X

Regulatory / Codes
PDAC Assigned Code: L1845 and L1852

References
Fleming BC et al., Am J Sports Med. 2000;28:815-824 (influence of functional knee bracing on ACL strain).

Technical Specifications

• Brand: DonJoy
• Model: OA FULLFORCE
• Indication: Offloads affected knee compartment for osteoarthritis; reduces ACL strain
• Technology: 4-Points-of-Leverage™; adjustable hinge for fine-tuning load transfer
• Correction: 4° built into frame; additional adjustability via hinge
• Fit: Lightweight, snug and anatomic; height 35 cm
• Sizes: 7 sizes available (XS to XXXL)
• Configurations: Medial RT/LT, Lateral RT/LT (see part numbers above)
• Accessories: Lycra (S-XXL), Neoprene (XS-XXL); strap kit and pads as listed
• Warranty/Trial: 90 Day Test Drive (return for full credit or refund if not satisfied within 90 days of fitting)
