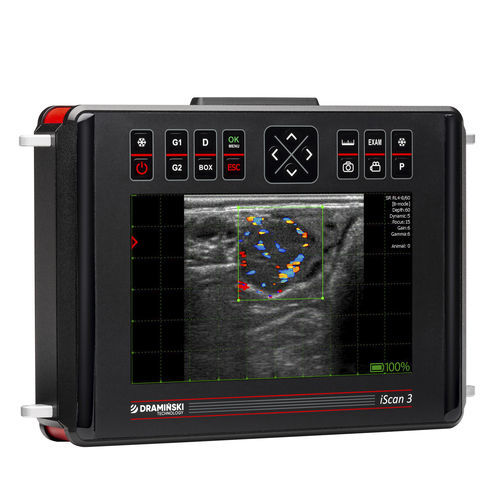

Portable veterinary ultrasound system iScan 3

multipurposefor swinefor cattle

Presentation
The iScan 3 is a portable veterinary ultrasound scanner designed for on-farm diagnostics of livestock. It supports reproductive management, pregnancy checks, fetal assessment and examination of lungs, abdominal organs, udder and locomotor system. The unit is optimized for field use with wireless connectivity and ergonomic controls.

Versatility

• Reproductive system examinations
• Blood flow diagnostics of the corpus luteum
• Pregnancy diagnosis and monitoring
• Determining fetal viability and sex
• Examinations of lungs, digestive tract, udder and locomotor system

Key features highlighted

• Color Doppler mode for corpus luteum activity assessment (approx. 18–20 days post-insemination)
• Built-in WiFi for wireless image transfer to tablets, phones and iLens wireless goggles (live viewing)
• Ergonomic keyboard with direct shortcuts and customizable labels for fast field operation
• Large 7" reinforced LCD with wide viewing angles
• Lightweight design: total weight with probe and battery approx. 2.6 kg

Set includes

• iScan 3 ultrasound scanner
• Ultrasound probe of choice
• External battery
• Battery charger
• Suspenders
• User manual (USB)
• Transport case

Diagnostic images and multimedia
The product page provides multiple diagnostic image sets (horse, cow) and demonstration videos illustrating pregnancy scans, fetal heartbeat, lung consolidation, corpus luteum Doppler and other clinical cases for reference.

Technical specifications

• Imaging modes: B Mode; Color Doppler
• Frequency range: 2–12 MHz (depending on probe)
• Compatible probes (examples): Convex 2–8 MHz; Abdominal linear 4–12 MHz; Microconvex 4–9 MHz; OPU 4–9 MHz; Rectal linear 4–9 MHz; Rectal convex 2–8 MHz
• Dynamic focus: Yes
• Image management: Freeze; Left-right invert; Save images; Save cine loops
• Image adjustment: Dynamic range; Sun mode; LuciD postprocessing
• Presets (probe-dependent): Cow Repro, Pregnancy, Sexing, Uterus; Equine Repro, Tendons, Testicles; Foal Abdomen; Dog Abdomen; Foetus; Sheep; Foal Lungs
• Postprocessing: Yes (LuciD)
• Measurements: Distance, Follicle, Ellipse Area, Grid; Obstetric package with aging tables; Doppler: Flow Area %
• Workflow tools: Animal counting; Backlit ergonomic keyboard
• Display: 7" LCD LED; 500 cd/m2; 800 × 480 px
• Control panel: Membrane keyboard with backlight
• Memory: 8 GB
• Export formats: PNG, MP4
• Data export: External flash drive (USB-C); Mobile app via WiFi
• Multimedia ports: USB-C
• WiFi: Built-in (Android and iOS; Draminski iScan App required)
• Power supply: External Li-ion battery
• Battery life: Up to 4 h
• Charging time: Up to 4 h
• Boot time: About 25 s
• Dimensions: 27 × 18 × 7 cm
• Weight (with probe and battery): 2.6 kg
• Ingress protection: IP32
• Accessories (examples): Stand; iLens wireless goggles; OPU; Extension and T-holder for rectal convex probe; Transport bag; Suspenders; Waist belt; Standoff
• Examined animals: Cows, Horses, Goats, Sheep, Pigs
• Applications: Abdominal imaging, Reproduction, Lung, Orthopedics
