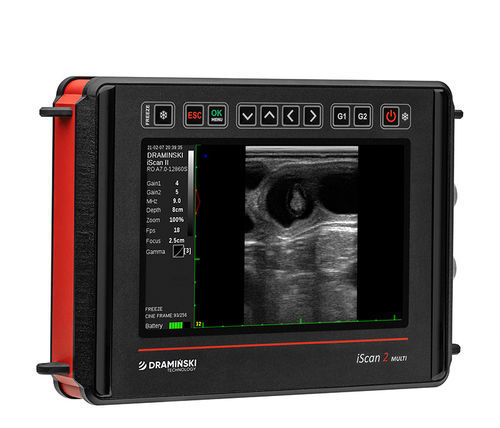

Portable ultrasound system iScan 2 MULTI

for multipurpose ultrasound imagingB/W7-inch

Presentation
iScan 2 MULTI is a portable, field-ready ultrasound scanner for livestock and mixed-animal practice, featuring interchangeable probes for reproduction, lung and general imaging tasks.

Key features

• Wide probe compatibility (rectal linear/convex/microconvex, abdominal linear/convex/microconvex, backfat, OPU) to cover multiple veterinary applications.
• LuciD™ advanced image processing for noise reduction, improved contrast and tissue differentiation.
• 7" LCD display (800 x 480 px, 500 cd/m2) with wide viewing angles; ruggedized for outdoor use.
• Long battery life (up to 7 h) with fast boot (<20 s) and configurable quick-access menu for one-button functions.
• Rugged, lightweight casing with active ventilation; scanner weight with battery ~2.06 kg (full kit ~2.64 kg).
• Flat screen, probe socket protection slide and waterproof keys to simplify cleaning and disinfection.
• Accessories available: goggles (LCD/OLED), sunshield, transport bag, suspenders, standoffs, battery support, Wi‑Fi antenna, OPU systems and probe extensions.

Probes (examples and use)

• Linear rectal probe – reproductive exams, pregnancy confirmation and fetal sexing in cattle and horses; with extension usable for sheep and alpacas; calf lung scans.
• Abdominal linear probe – tendon and ocular scans in horses; usable for exotic species and fish.
• Convex rectal probe – rectal reproductive exams in cattle, small ruminants and pigs (abdominal); pelvic diagnostics in horses.
• Convex abdominal probe – pregnancy checks in small ruminants and sows; lung exams in cattle and horses; umbilical region in calves and foals.
• OPU – oocyte aspiration from ovarian follicles in cattle; drainage of ovarian cysts in horses.
• Backfat probe – backfat thickness measurement and longissimus dorsi area assessment for cattle and swine breeds.

Why choose the iScan 2 MULTI?

• Comprehensive probe range to support reproduction, lung and general examinations.
• Enhanced image quality via hi‑tech processor and LuciD™ postprocessing.
• Large 7" screen and robust design for precise field diagnostics.
• High operational autonomy with up to 7 h battery life; screen can be switched off to save power without full shutdown.
• Fast setup with customizable quick access menu and savable presets (up to 5).
• Lightweight but durable housing with active ventilation for extended field use.
• Designed for easy cleaning and disinfection to meet biosecurity requirements.

Technical data (summary)
Imaging modes: B / B+B / B+M
Frequency range: 2–14 MHz (probe dependent)
Examples of probes: Backfat 2–5 MHz; Convex 2–5 MHz; Convex 2–8 MHz; Abdominal linear 6–14 MHz; Microconvex 4–9 MHz; OPU 4–9 MHz; Rectal linear 4–9 MHz; Rectal convex 2–8 MHz; Rectal microconvex (P-probe) 4–9 MHz
Dynamic focus: Yes
Image management: Freeze; Zoom 60–200%; Full screen; Invert left-right; Image rotation; Save images; Save cine loops
Imaging adjustment: Frame averaging; Negative; LuciD™
Presets: Up to 5 savable presets
Measurements: Distance, Follicle, Area, Area polygon, Volume, Grid, Backfat; Obstetric package with species-specific aging tables; Needle measurement
Workflow tools: Customisable Quick Access Menu
Display: 7" LCD LED; 500 cd/m2; 800 x 480 px
Control panel: Membrane keyboard
Memory: 200 images; 200 cine loops
Export formats: AVI, BMP
Data export: USB flash drive; images to mobile app via Wi‑Fi (images only, Wi‑Fi antenna optional)
Multimedia ports: 6-pin data; 12-pin goggles connector
Power supply: Detachable battery
Battery life: Up to 7 h; charging time up to 4 h
Booting time: < 20 s
Dimensions: 25.6 x 16.5 x 6.9 cm
Weight: Scanner with battery ≈ 2.06 kg; with probe and battery ≈ 2.64 kg
IP rating: IP32
Examined animals: Cattle, Equines, Goats, Sheep, Pigs
Specialisation: Reproduction, Lungs

Set includes (standard)

• iScan 2 MULTI ultrasound scanner
• Selected ultrasound probe (must be chosen before purchase)
• External battery
• Battery charger with 230 V cable
• Suspenders
• USB storage adapter
• User manual (USB)
• Transport case

Warranty
24 months for the scanner; 12 months for probes; 6 months for the battery

Technical specifications

• Model: iScan 2 MULTI
• Brand: Dramiński
• Imaging modes: B, B+B, B+M
• Frequency range: 2–14 MHz (probe dependent)
• Compatible probes: rectal linear/convex/microconvex, abdominal linear/convex/microconvex, backfat, OPU
• Image technology: LuciD™
• Display: 7" LCD LED, 800 x 480 px, 500 cd/m2
• Memory: 200 images, 200 cine loops
• Export: USB (AVI, BMP); mobile app via Wi‑Fi (images only)
• Battery life: up to 7 h; charge time ≈ 4 h
• Boot time: < 20 s
• Dimensions: 25.6 x 16.5 x 6.9 cm
• Weight (with probe & battery): ≈ 2.64 kg
• IP rating: IP32
• Accessories (examples): goggles, sunshield, probe extensions, transport bag, OPU systems, Wi‑Fi antenna, spare battery
• Warranty: 24 months (unit), 12 months (probes), 6 months (battery)
