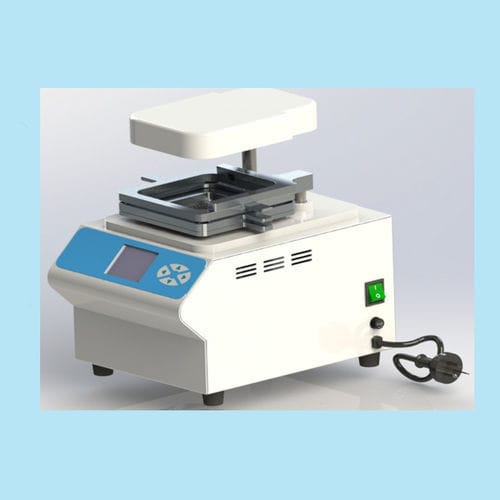

Electronic dental press KY690-A

Product
KY690-A Dental film press

Category
Device for pressing and sealing dental radiographic films used in dental laboratories and clinics

Technical parameter
Working temperature: 500~700 °C adjustable
Temperature control accuracy: ≤±10 °C
Operating ambient temperature: 0~40 °C
AC power supply: 220V ± 10% 50Hz
Motor power: 700 W × two
Heating power: 750 W × two
Total power: 2500 W
Maximum current: 3.2 A
Fuse: 12 A
Overall dimension: 220 × 560 × 340 mm (L × W × H)
Weight: 10.5 kg
Storage environment: Temperature: -40 °C~55 °C; Humidity: ≤ 90% RH; Atmospheric pressure: 50 kPa~106 kPa

Features / technical specifications

• Adjustable working temperature range 500–700 °C
• Temperature control accuracy ≤ ±10 °C
• Designed for use in dental laboratories and clinics
• AC supply 220V ±10%, 50Hz
• Two motors, each 700 W
• Two heating elements, each 750 W
• Total electrical power 2500 W
• Maximum current 3.2 A; fuse rating 12 A
• Compact dimensions: 220 × 560 × 340 mm (L × W × H)
• Weight: 10.5 kg
• Storage temperature: -40 °C to 55 °C
• Storage humidity ≤ 90% RH
• Storage atmospheric pressure 50 kPa to 106 kPa
