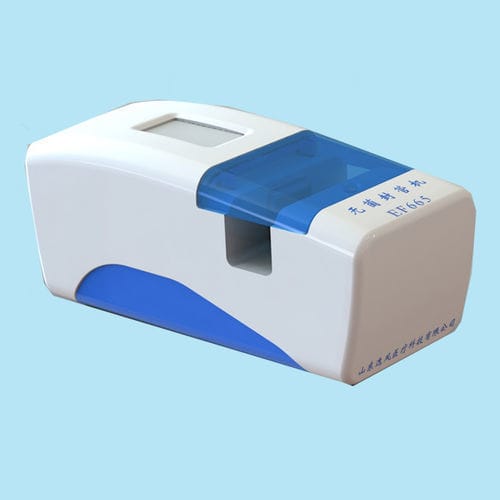

Sterile tube sealing machine EF665

medicallaboratoryfor the pharmaceutical industry

Overview
The EF665 is designed for aseptic disconnection and sealing of TPE thermoplastic tubes commonly used in medical and pharmaceutical processes. The unit supports outer diameters from 1/4 in to 1-3/8 in, providing a repeatable aseptic sealing method for sterile fluid lines.

Key features

• Compatibility: Dry and aseptic disconnects with liquid for lines from 1/4 in to 1-3/8 in OD—one unit covers multiple tube sizes.
• Sealing stability: Enlarged pipe contact area for improved heat transfer and consistent seal quality.
• Compact design: Lightweight, split construction to fit constrained laboratory or production environments.
• Operation: Plug-and-play, full automation with a simple interface and one-button seal cycle.
• Service and support: Comprehensive technical assistance and rapid after-sales response to maintain uptime.
• Traceability: Three user permission levels and secure, auditable data recording for process control.

Technical specifications

• Tube compatibility: TPE tubes with OD from 1/4 in to 1-3/8 in
• Operating temperature: 5 °C to 40 °C
• Intended use: Indoor, controlled-environment operation
• Sealing cycle time: 3–6 minutes
• Dimensions (L×W×H): 500 mm × 210 mm × 232 mm
• Power supply: 220 VAC ±10% 50 Hz
• Net weight: 9 kg
