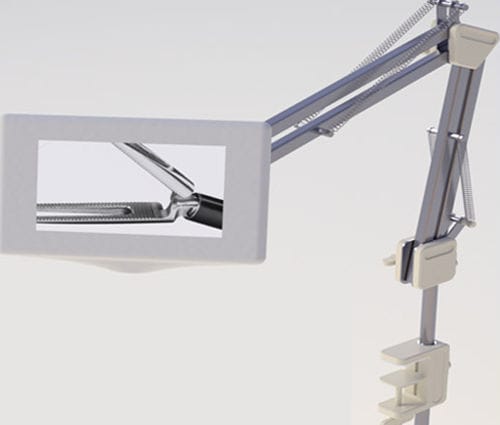

Digital magnifier EF270-A
Add to favorites
Compare this product
Description
Product overview
Display
Magnification
Touch
Camera
Power and battery
Applications
Technical specifications
- Equipped with high-definition camera and 11.6-inch display; integrates lighting, image capture and storage for inspection tasks.
- Provides optical and digital magnification from several times up to tens of times for detailed visual inspection.
- Suitable for real-time observation of dynamic details, verification of cleaning/processing results and other inspection scenarios.
Display
- LCD size: 11.6-inch TFT LCD
- Resolution: 1920 × 1080 (16:9)
Magnification
- Magnification factor: continuously adjustable from 10x to 40x
Touch
- Touch type: capacitive touch screen
Camera
- Camera module parameters: 4K, 3840 × 2160
- Maximum resolution for still images: 3840 × 2160
- Maximum video recording resolution: 1920 × 1080 at 30 frames per second
Power and battery
- Power supply: AC/DC dual-use
- Built-in lithium battery: 2000 mAh, approx. 2 hours operating time
Applications
- Real-time observation of small or moving details, inspection and verification of cleaning or processing results, and other tasks requiring magnification, imaging and storage.
Technical specifications
- Model: EF270-A
- Display: 11.6-inch TFT LCD, 1920 × 1080 (16:9)
- Magnification: 10x–40x (continuously adjustable)
- Touch: capacitive touch screen
- Camera: 4K module (3840 × 2160 still images); video recording up to 1920 × 1080 @ 30 fps
- Power: AC/DC dual-use
- Battery: 2000 mAh lithium, approx. 2 hours operating time
