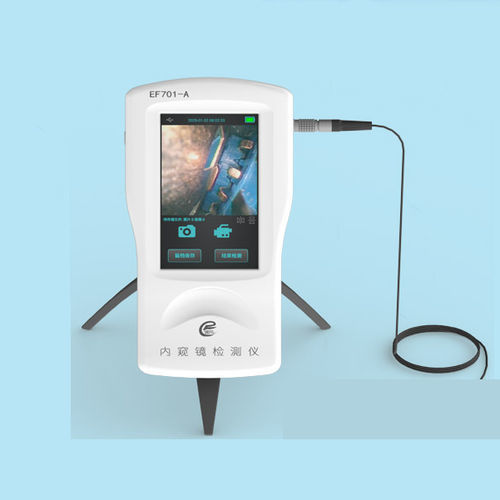

Control detector EF701-A

sterilizationfor endoscopesportable

Application
This detector is designed for monitoring endoscope cleanliness in reprocessing units (CSSD), equipment departments, laboratories, medical records departments and endoscopy centers. It supports routine quality control, process verification and documentation for infection prevention and device management.

Description

• Operating system: Android 4.4.2
• Display: 5" color HD LCD
• Pixel count / resolution: 160,000 (400 × 400)
• Probe diameter: 1.6 mm
• Insertion tube length: 1.0 m
• Shooting angle: 120° ±6°; Viewing angle: 0° ±6°
• Working depth: 5–25 mm
• Image and video resolution: 400 × 400
• Weight: 0.5 kg (including battery)
• Photo capture, video recording and local storage functions
• Work records, images and videos exportable via external USB drive
• Storage: 32 GB SD card (replaceable, upgradable)
• Battery capacity: 2000 mAh
• Power adapter: DC 15 V
• Portable design for point-of-care inspection and process verification

Technical specifications

• Model: EF701-A Endoscopic Detector
• Operating system: Android 4.4.2
• Display: 5" color high-definition LCD
• Pixel count / resolution: 160,000 (400 × 400)
• Probe diameter: 1.6 mm
• Insertion tube length: 1.0 m
• Shooting angle: 120° ±6°
• Viewing angle: 0° ±6°
• Working depth: 5–25 mm
• Image & video resolution: 400 × 400
• Weight: 0.5 kg (including battery)
• Photo capture and video recording functions
• External USB export of records, images and videos
• Storage card: 32 GB (replaceable, upgradable)
• Battery: 2000 mAh
• Power adapter: DC 15 V
