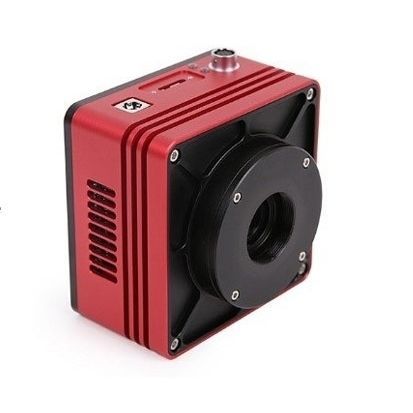

Camera for life sciences applications MaxCam-990TE-TR

digitalInGaAs1.3 Mpx

The MaxCam-990TE-TR is an advanced infrared camera that offers high sensitivity and exceptional performance in the Vis-SWIR (Visible to Short-Wave Infrared) spectrum. Here’s a summary of the camera’s key features: The camera utilizes an InGaAs (Indium Gallium Arsenide) sensor, which is optimized for infrared imaging. Sensor: Sony IMX990, 1/2-inch, with a resolution of 1280×1024 pixels. Pixel Size: 5 µm, which enhances spatial resolution. Spectral Sensitivity: The camera can detect light across a wide spectral range, from 400 nm to 1700 nm, covering the visible and short-wave infrared spectrum. Cooling System: The camera has TE (Thermo-Electric) cooling with a temperature differential of 30°C, which ensures better image quality by reducing thermal noise. Software & API Support: EHDView Image-Analysing Software: Available for Windows, with a Lite Version for Linux, MAC OS, and Android. Programmable interfaces via API support for Windows, Linux, MAC OS, and Android. The API includes support for LabView, MATLAB, Python, and Java, making it versatile for integration into various systems. Connectivity: The camera offers multiple interface options for data transfer: USB3.0 10GigE CameraLink This makes the camera adaptable to different hardware setups and data throughput requirements. Triggering & GPIO: The system features an opto-isolated trigger input/output, enabling synchronized operations. Includes General Purpose Input/Output (GPIO) pins for further control and integration with external devices.
